Dental Valves & Fittings — Custom Configuration

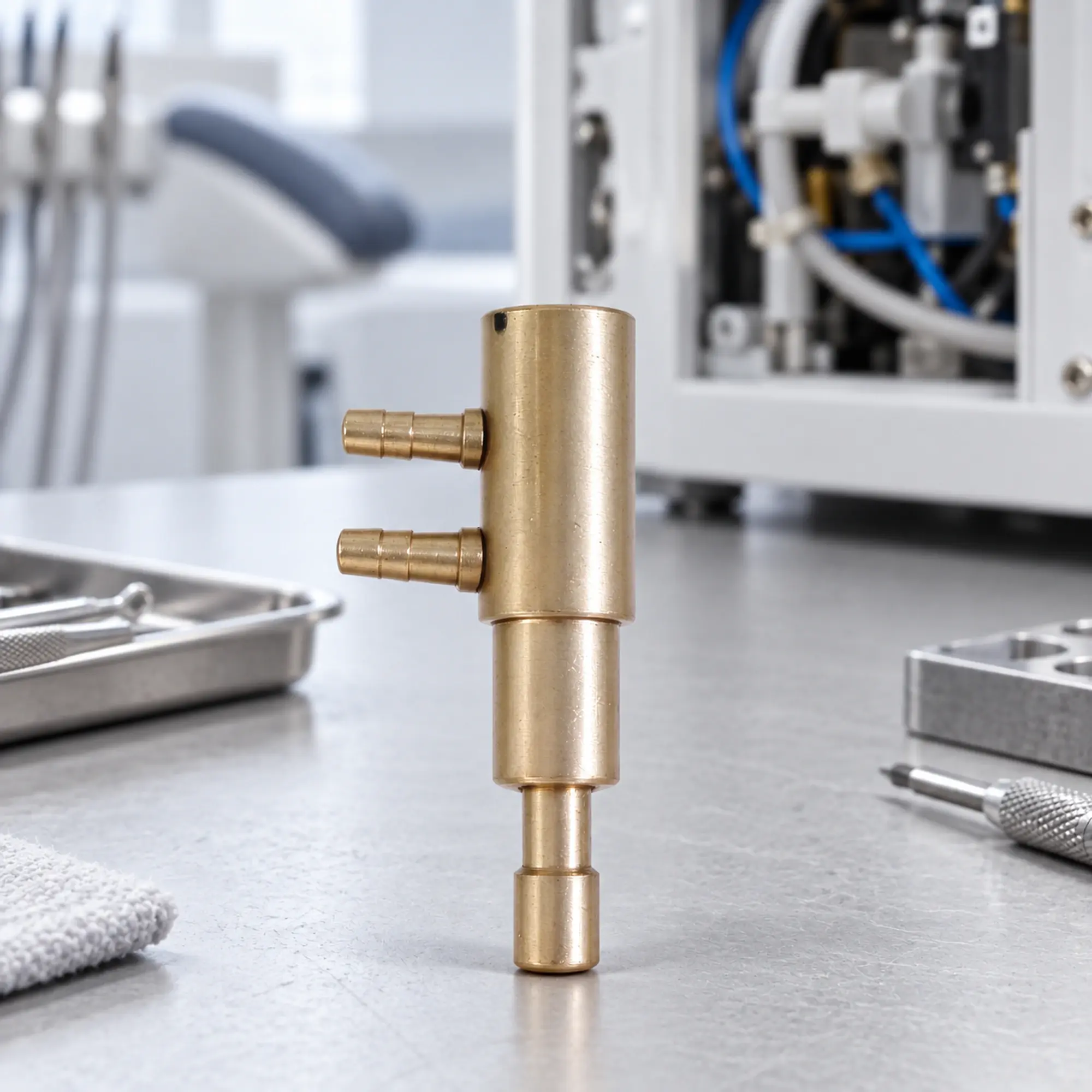

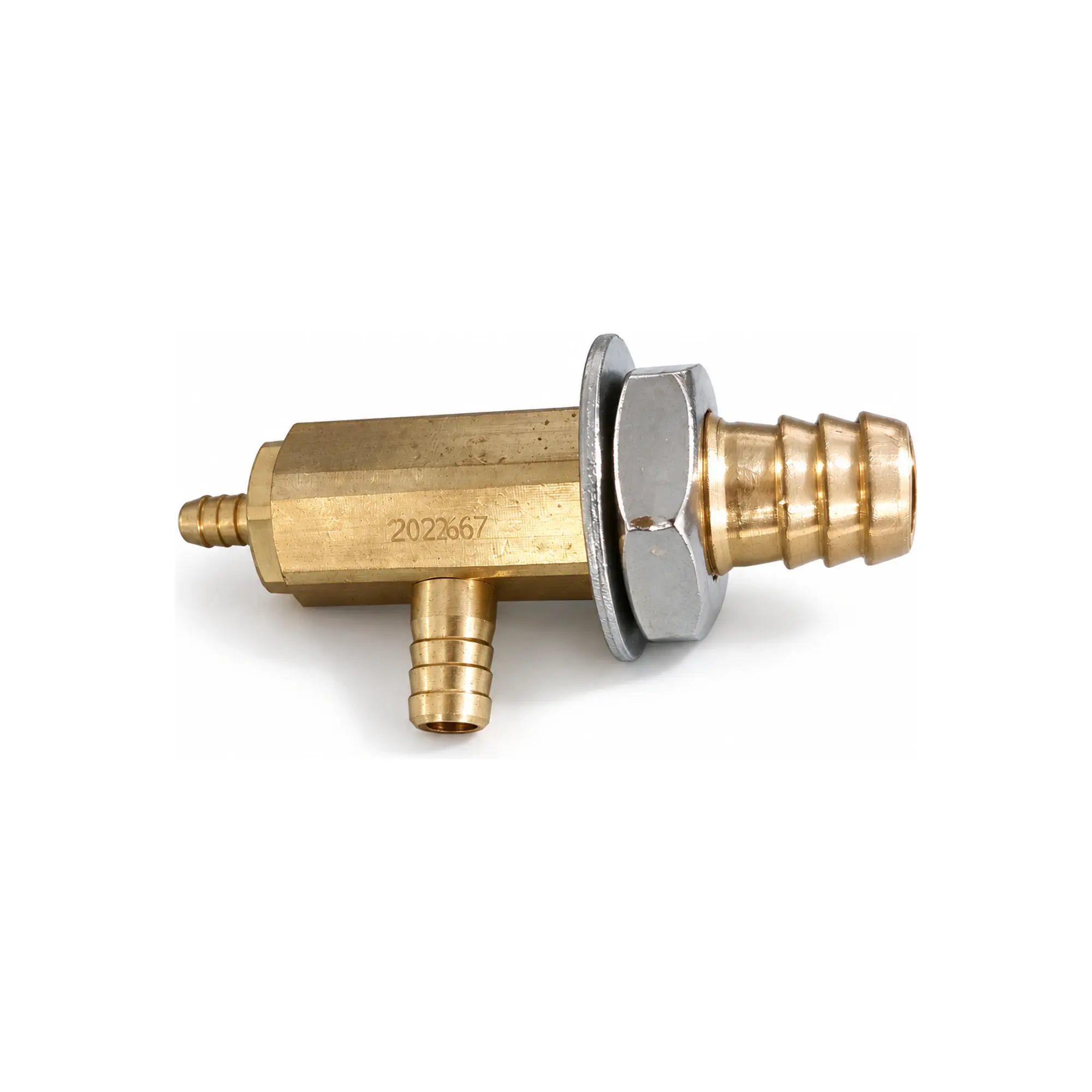

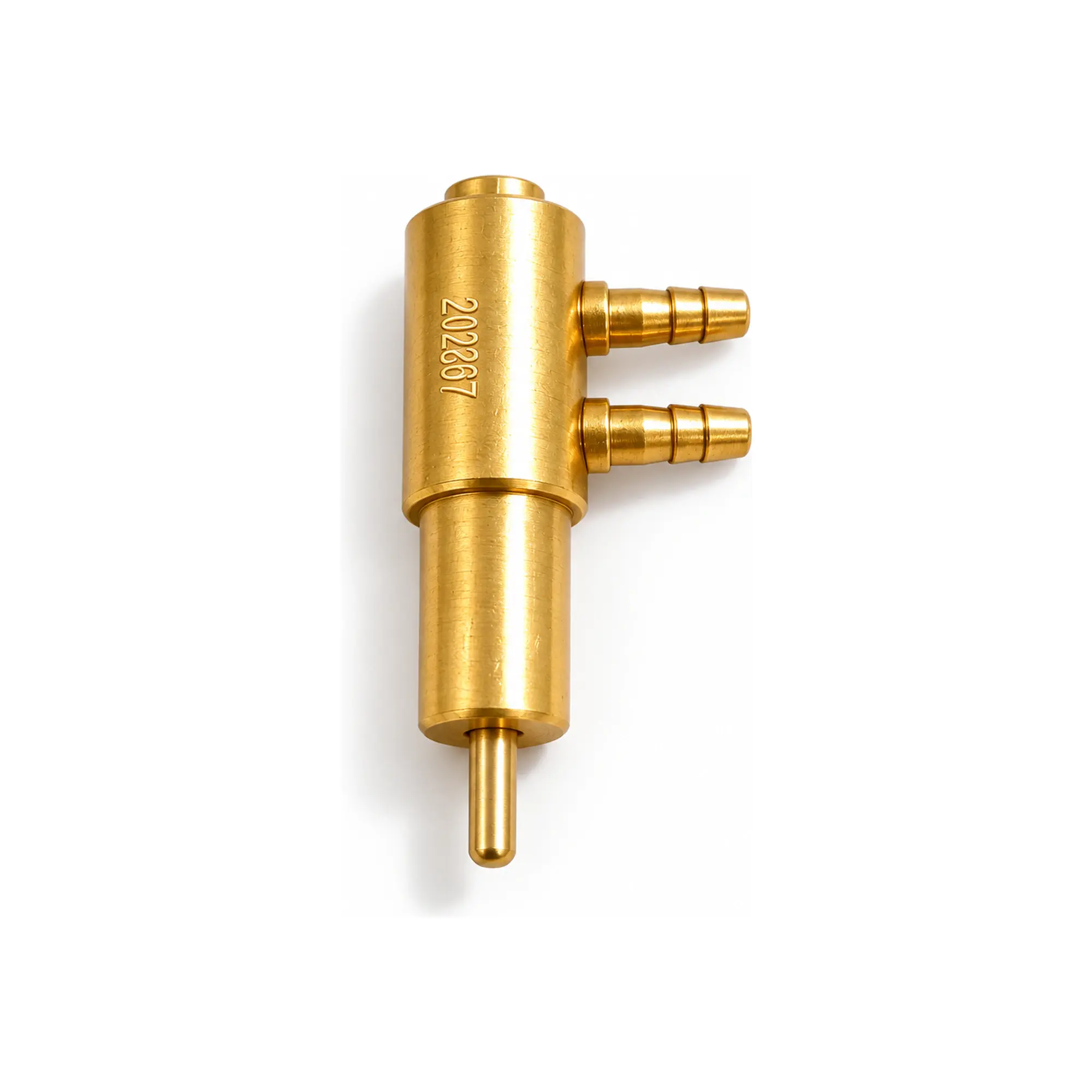

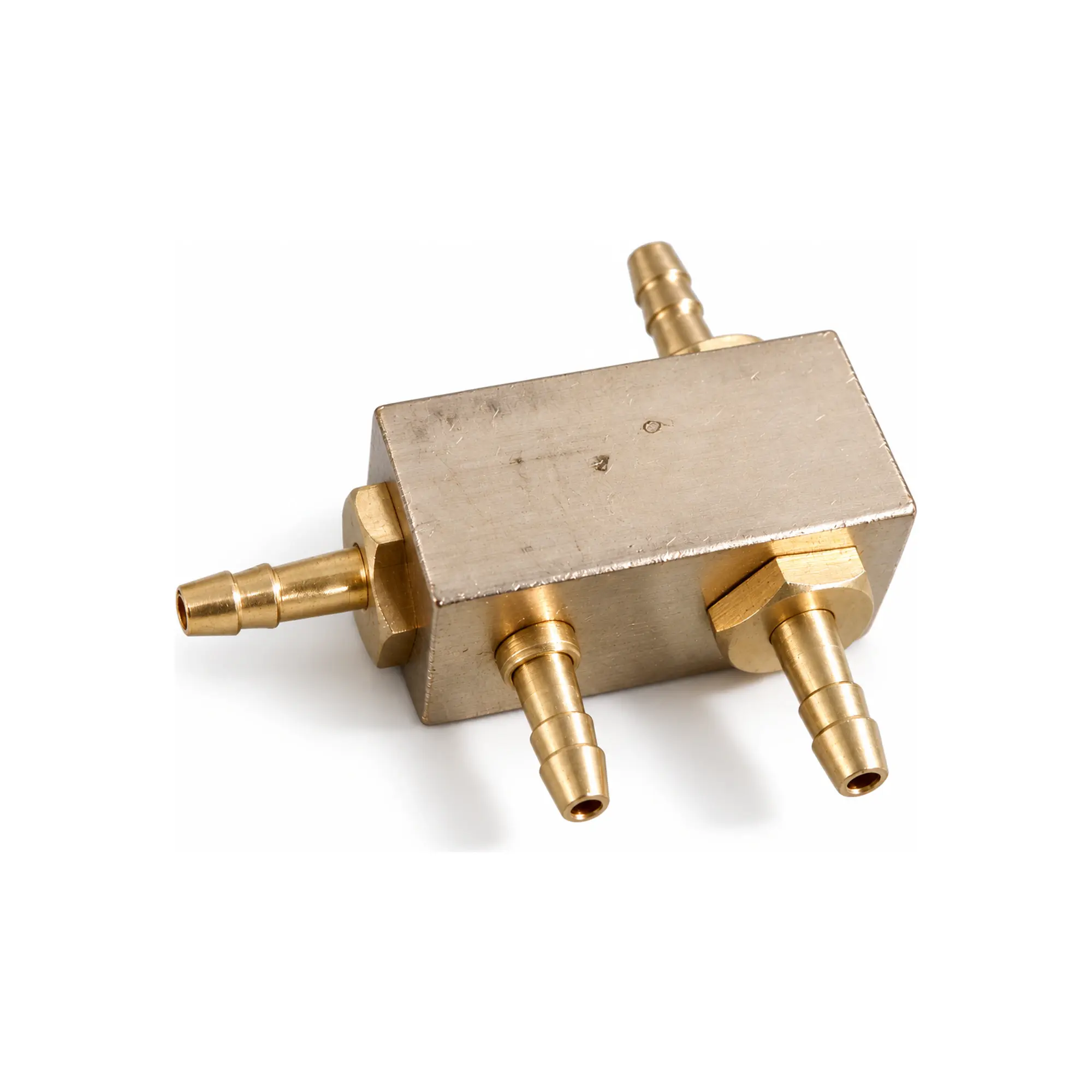

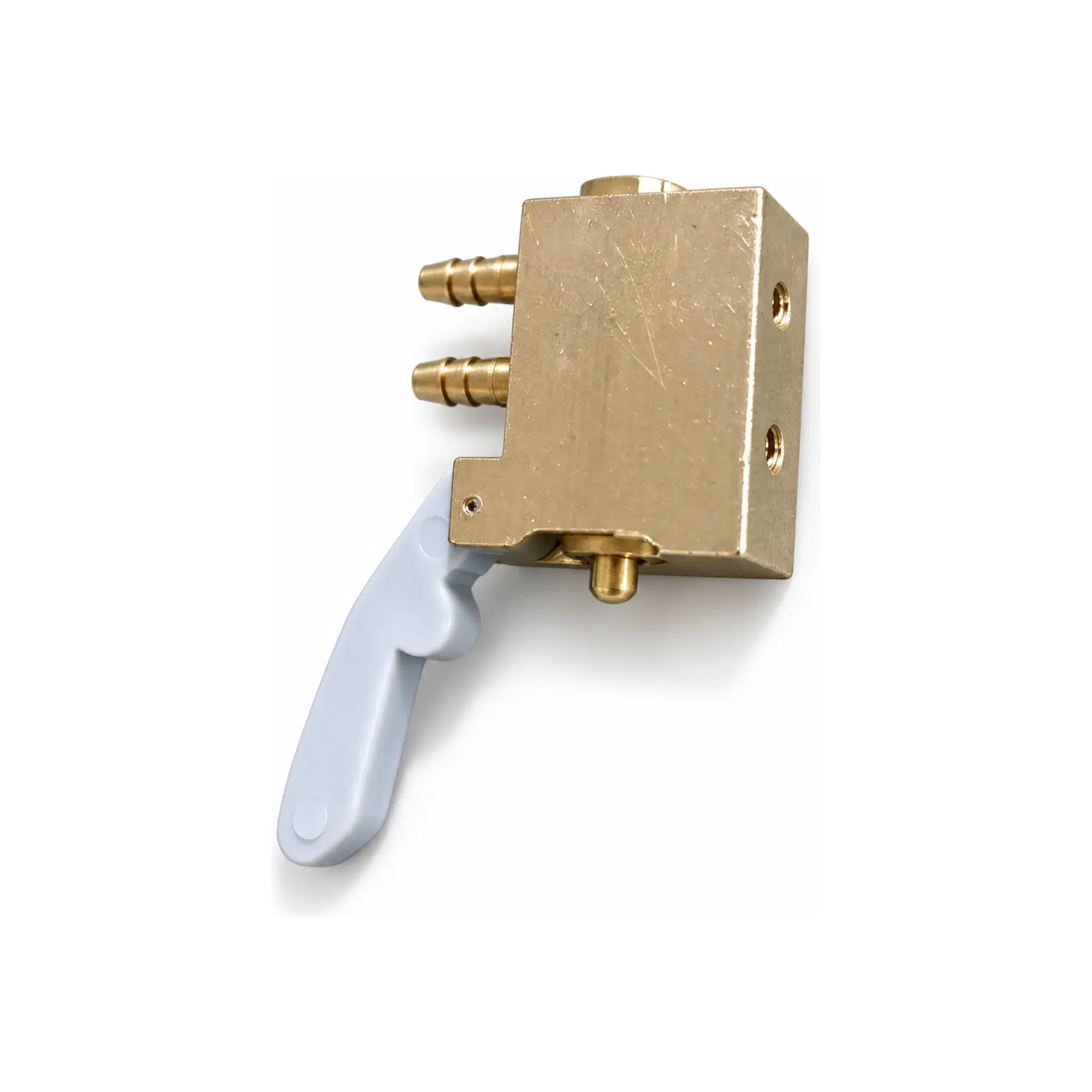

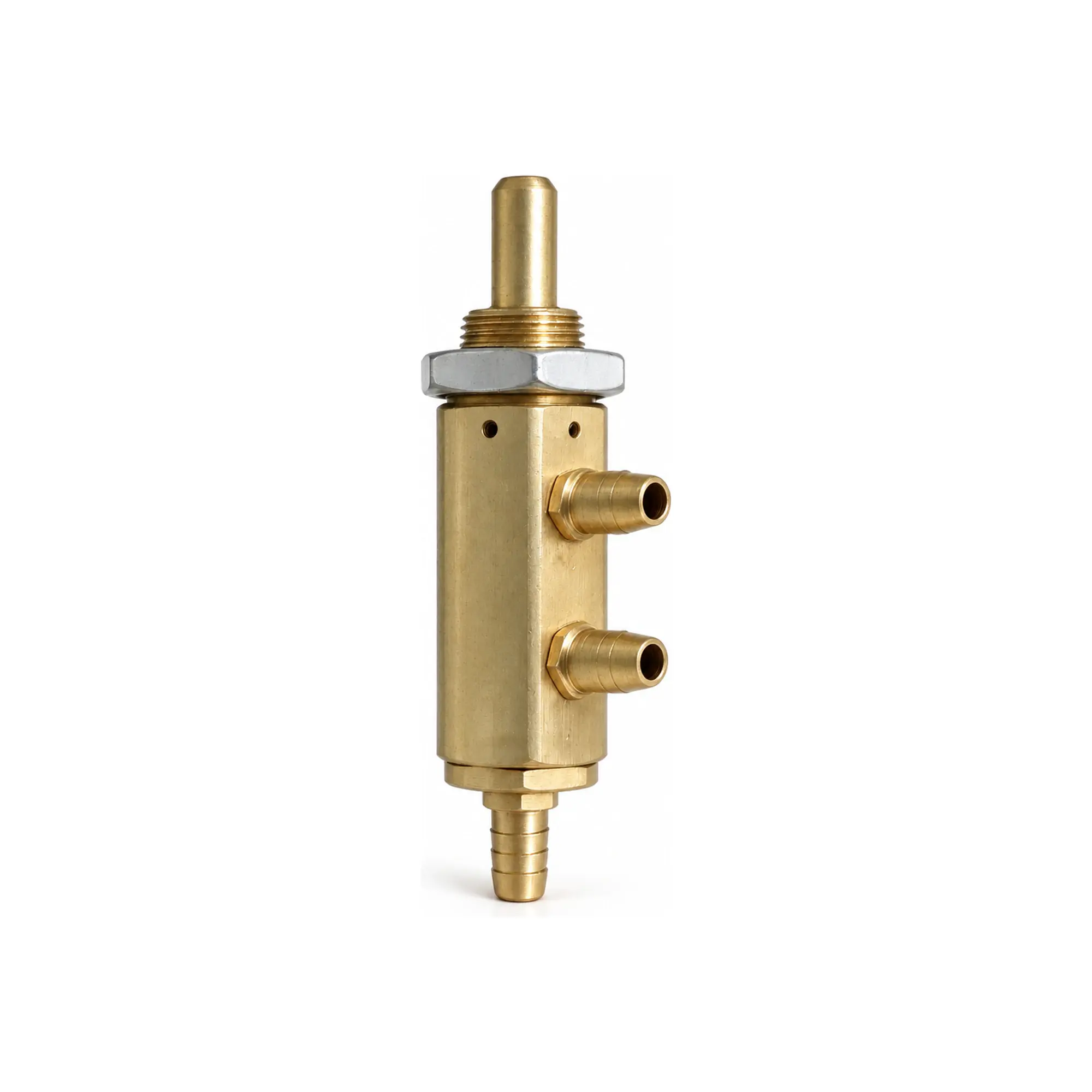

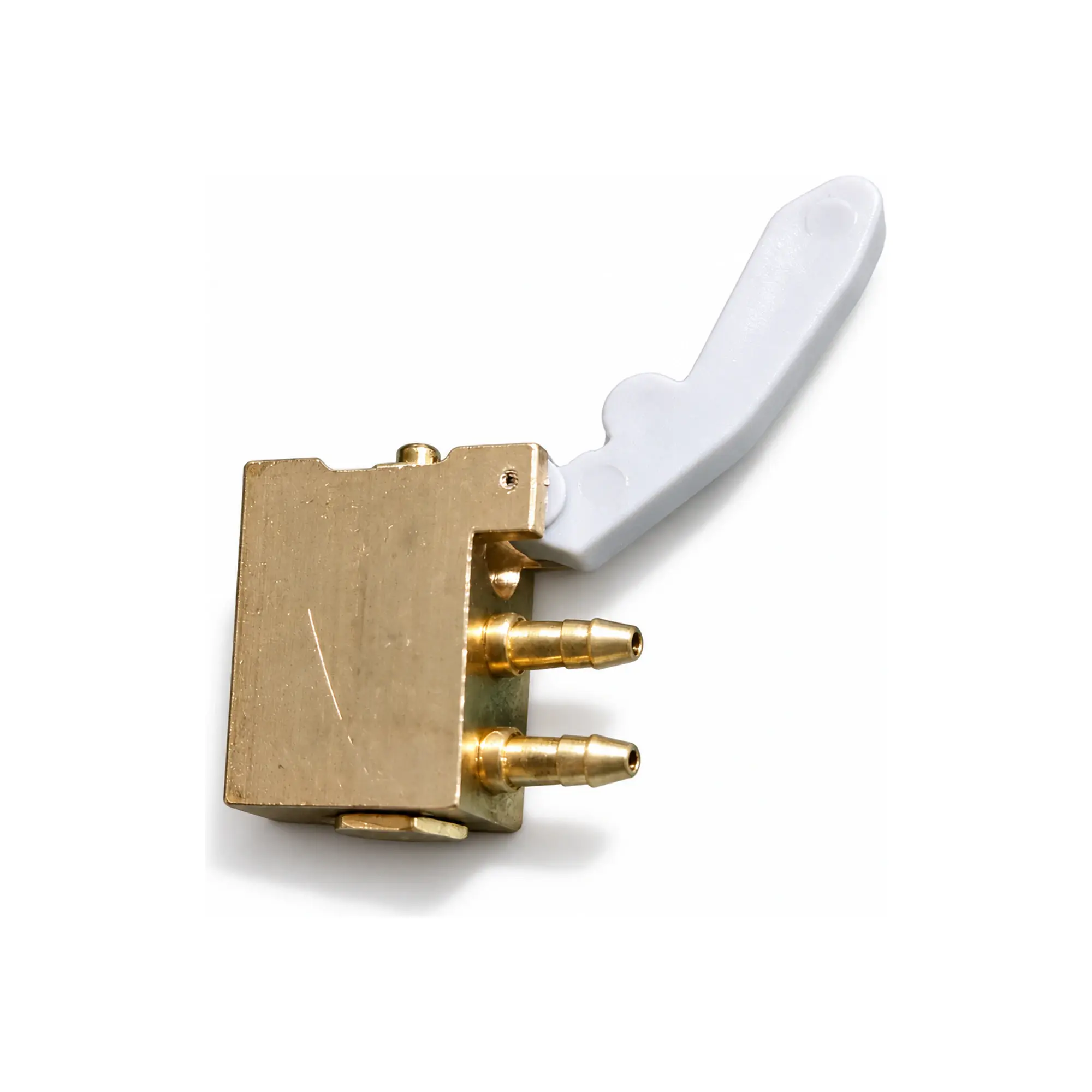

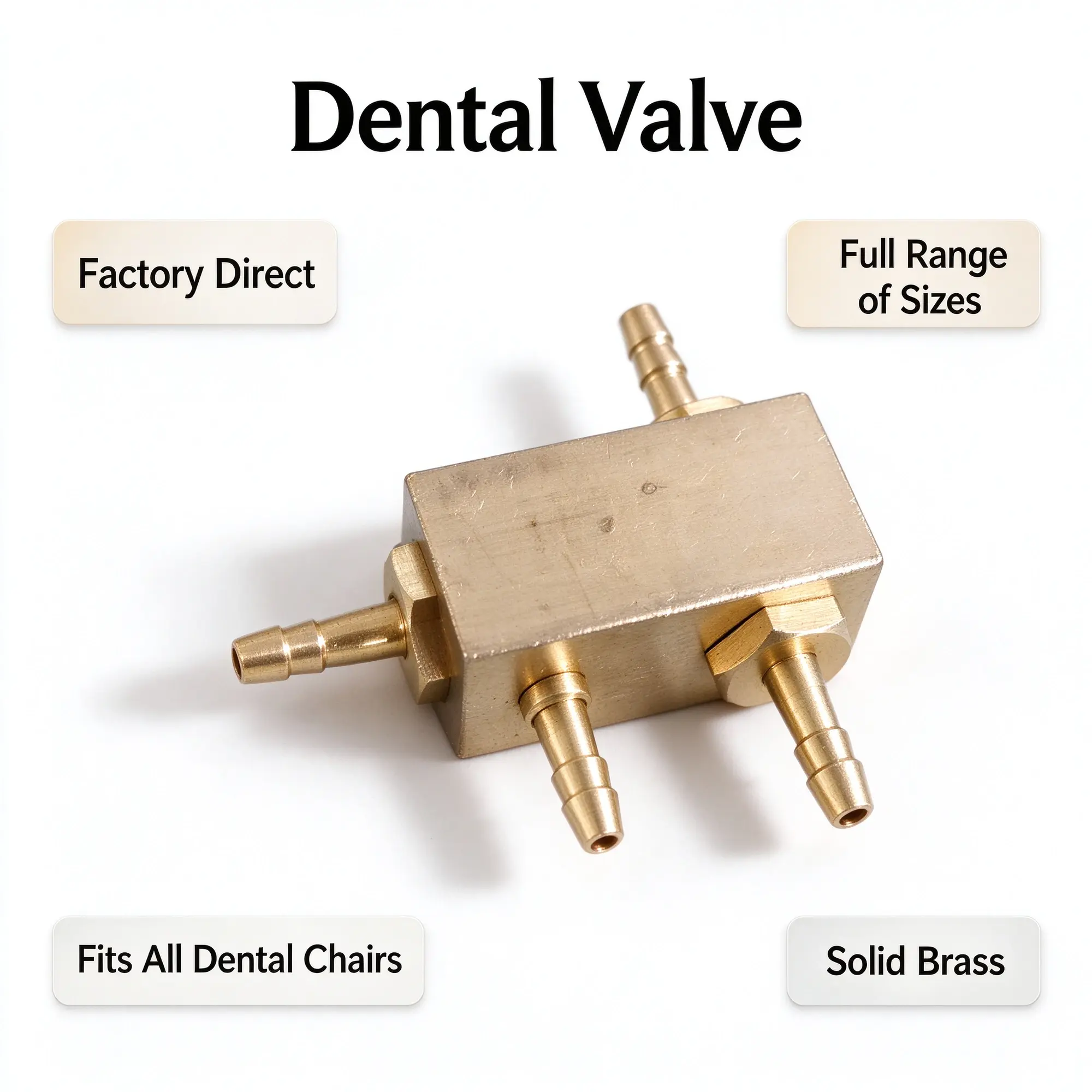

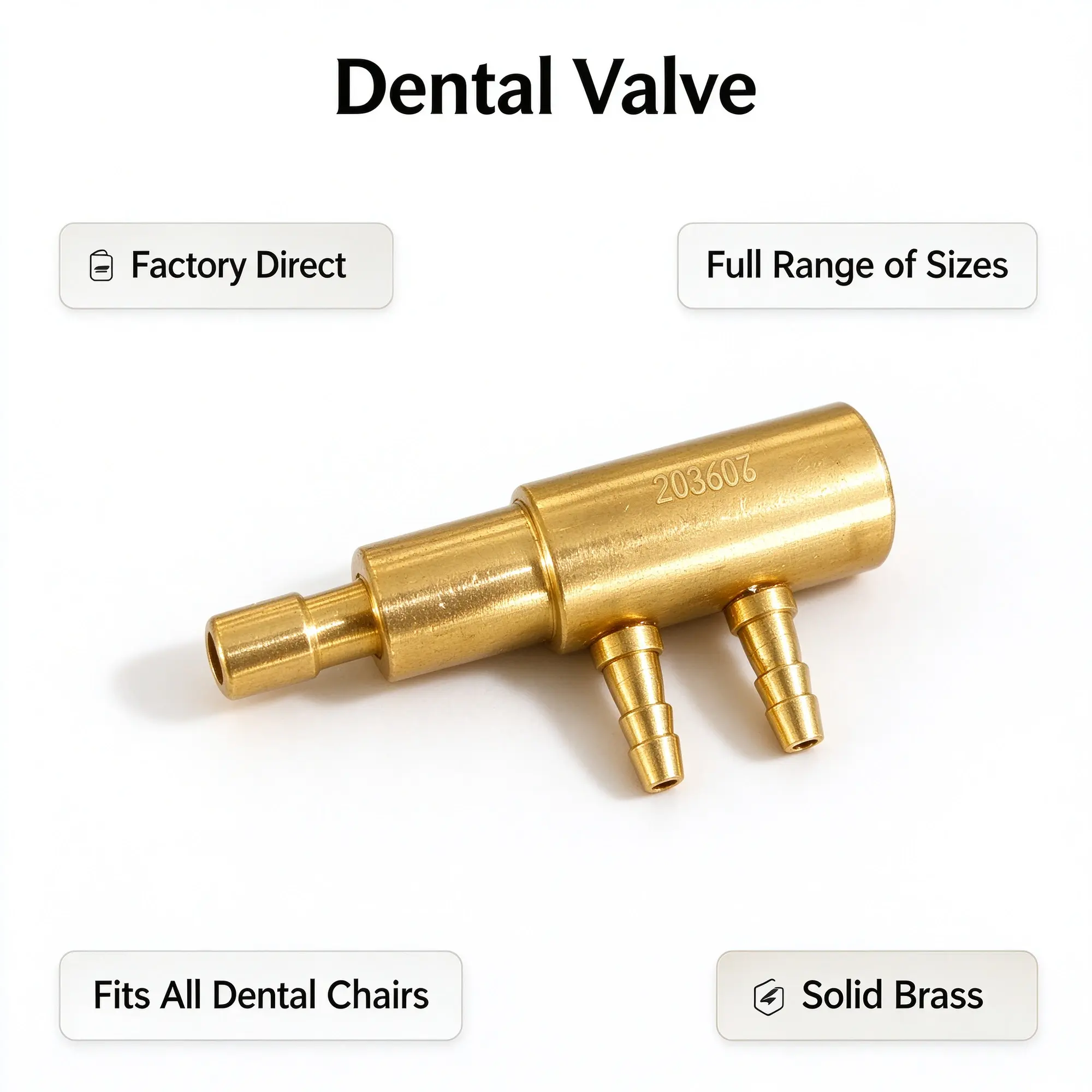

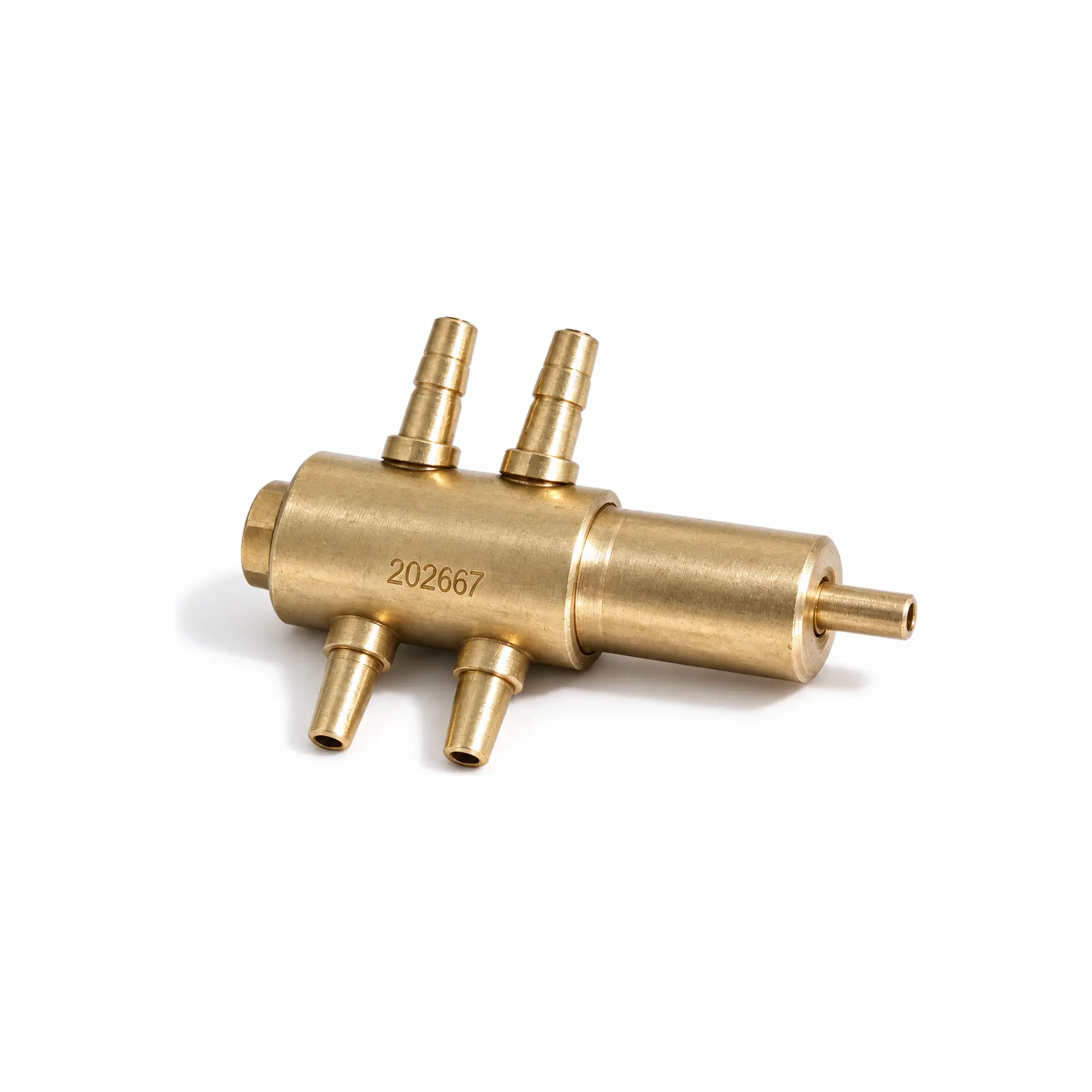

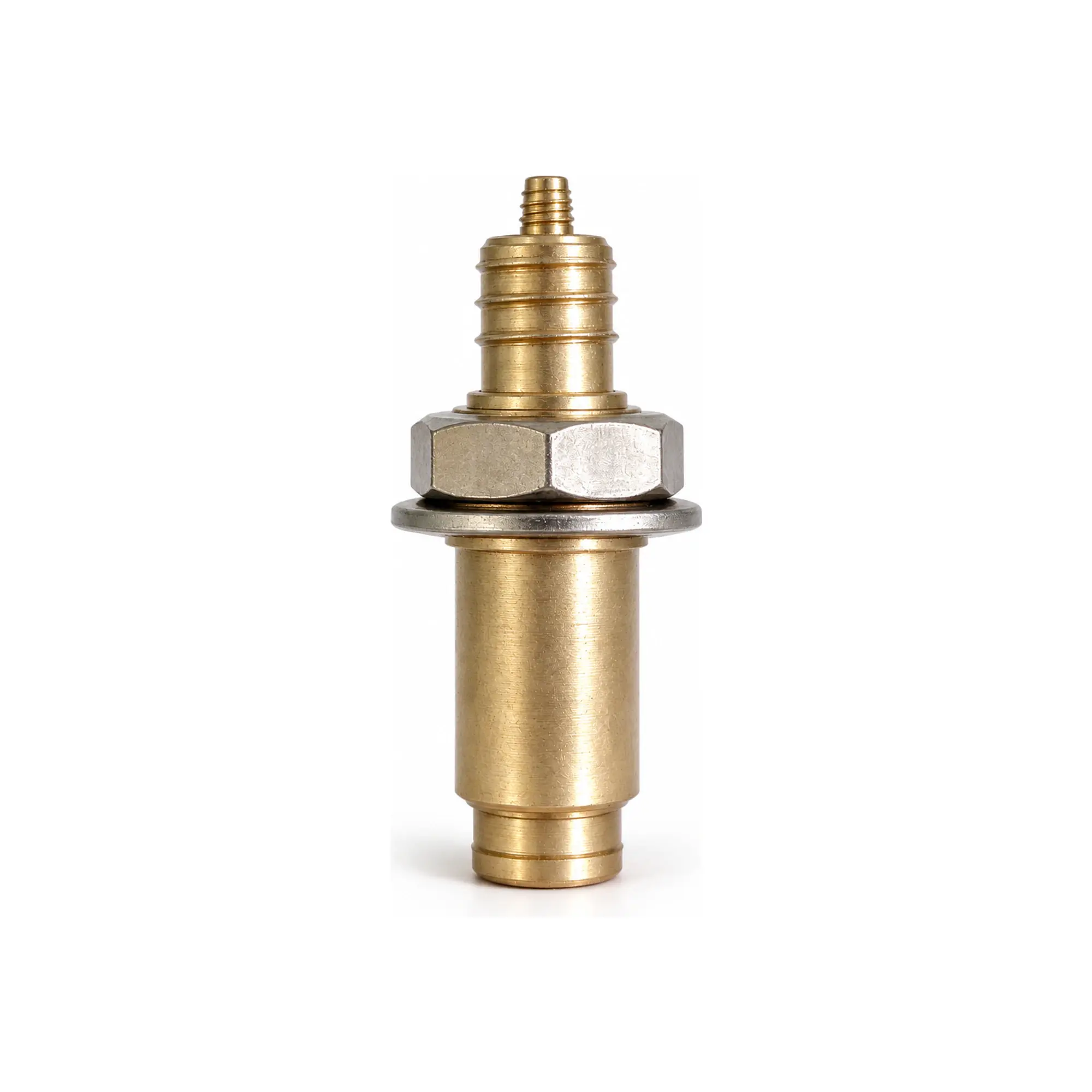

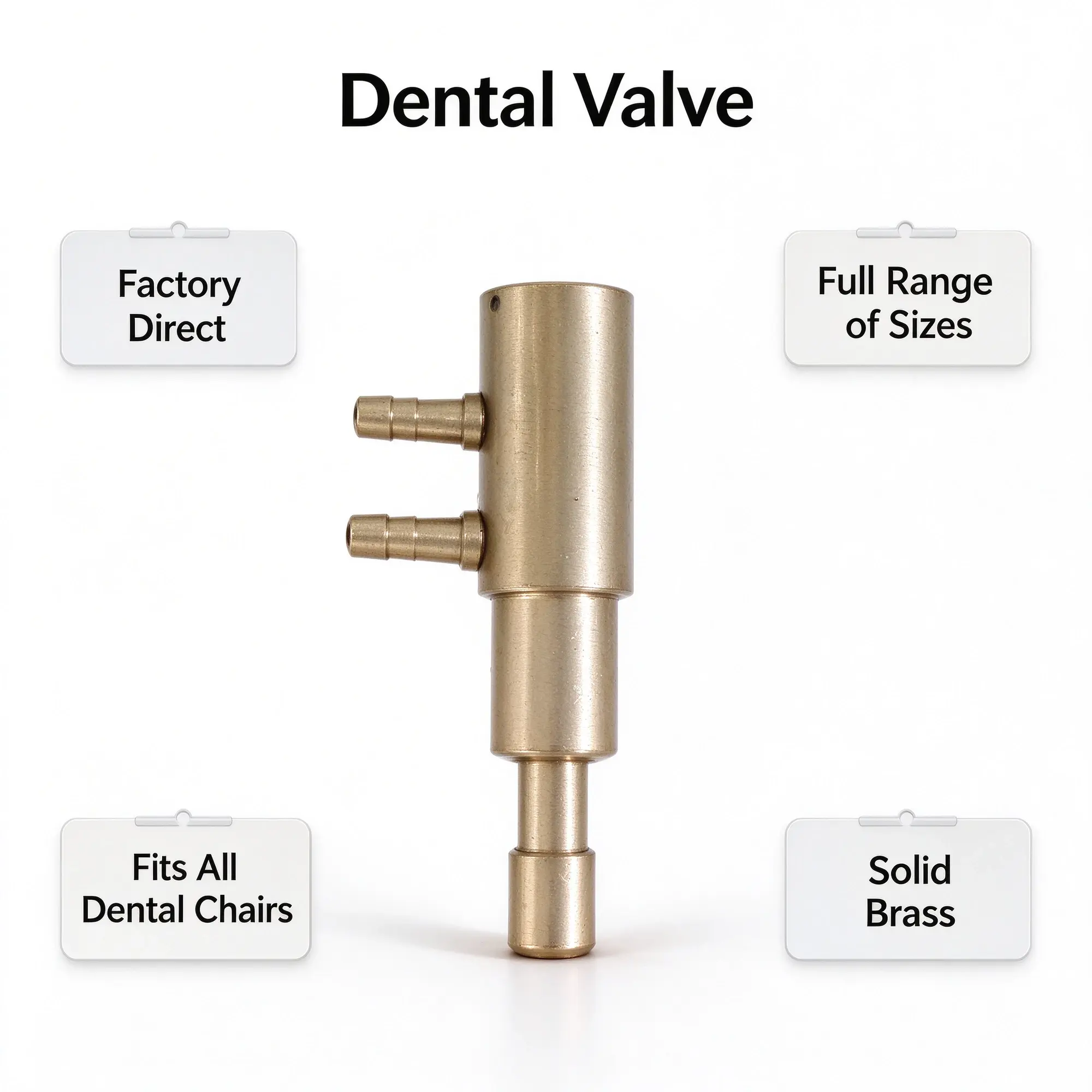

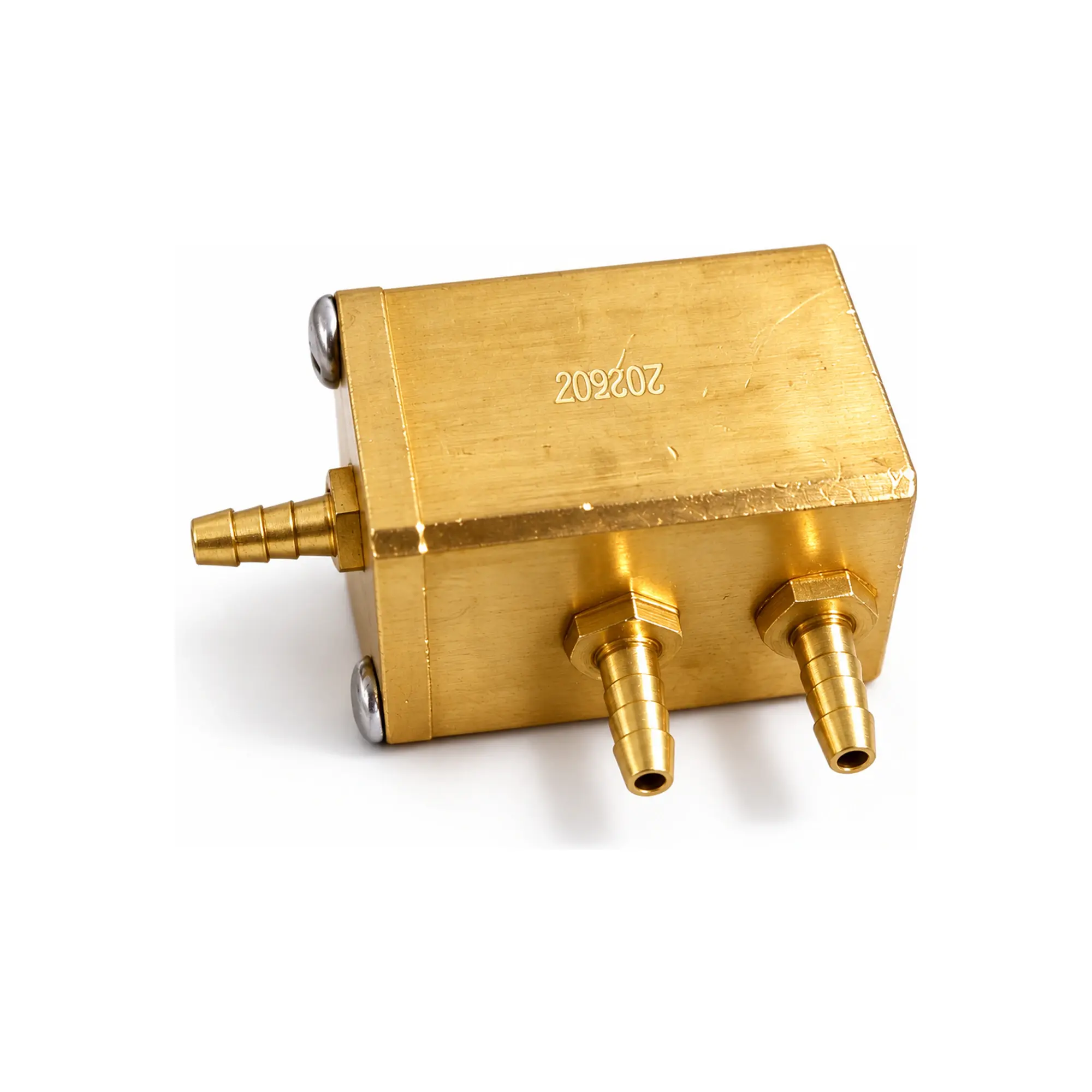

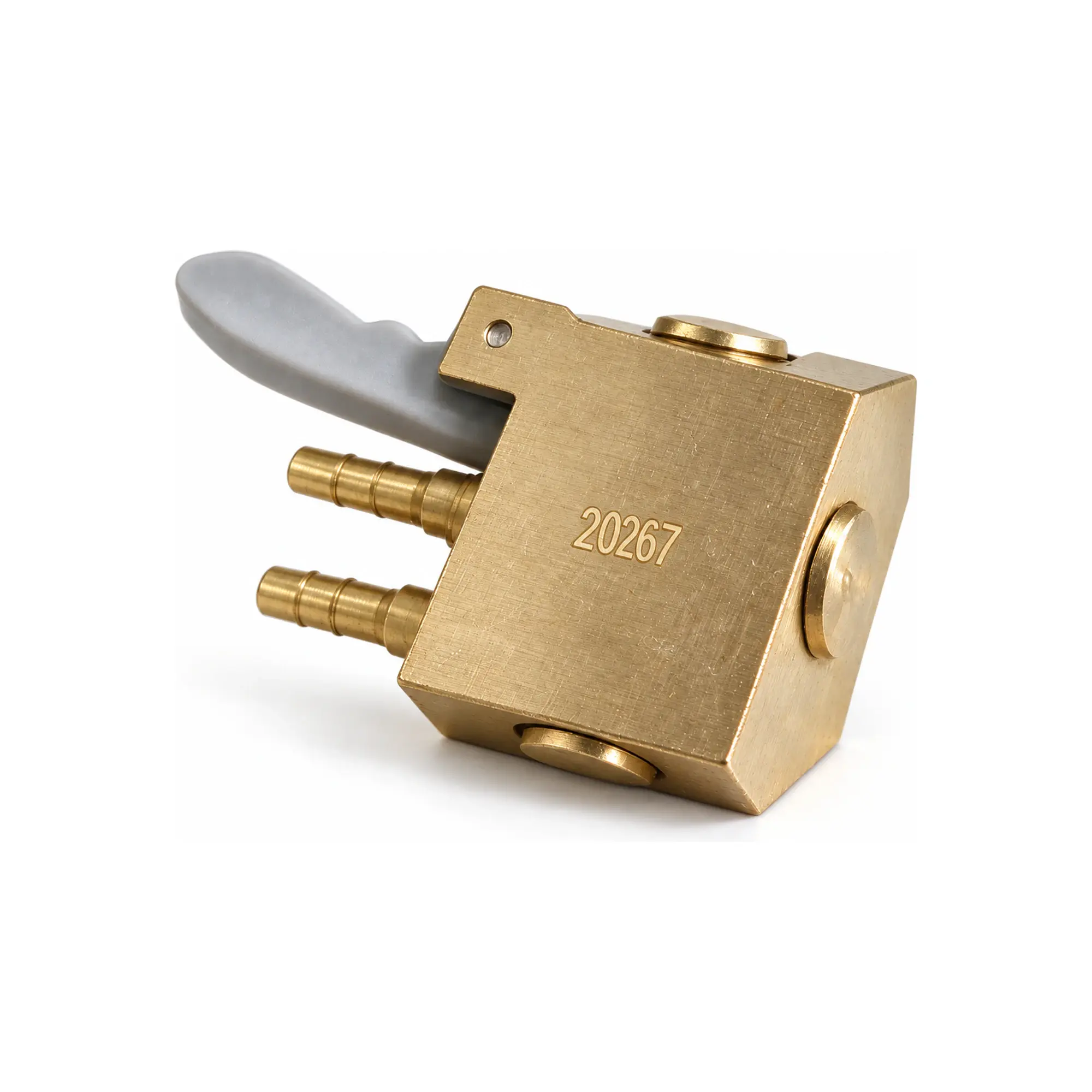

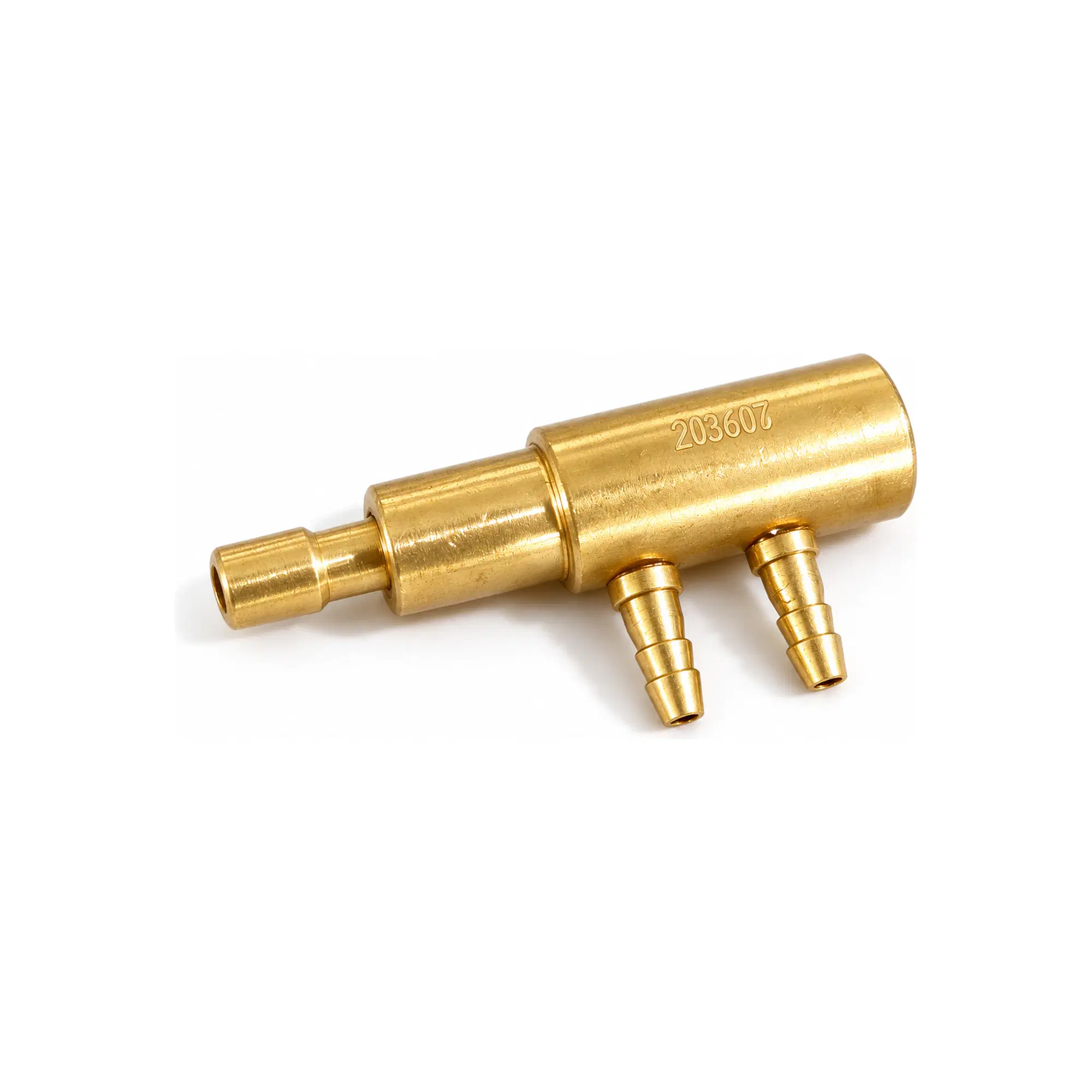

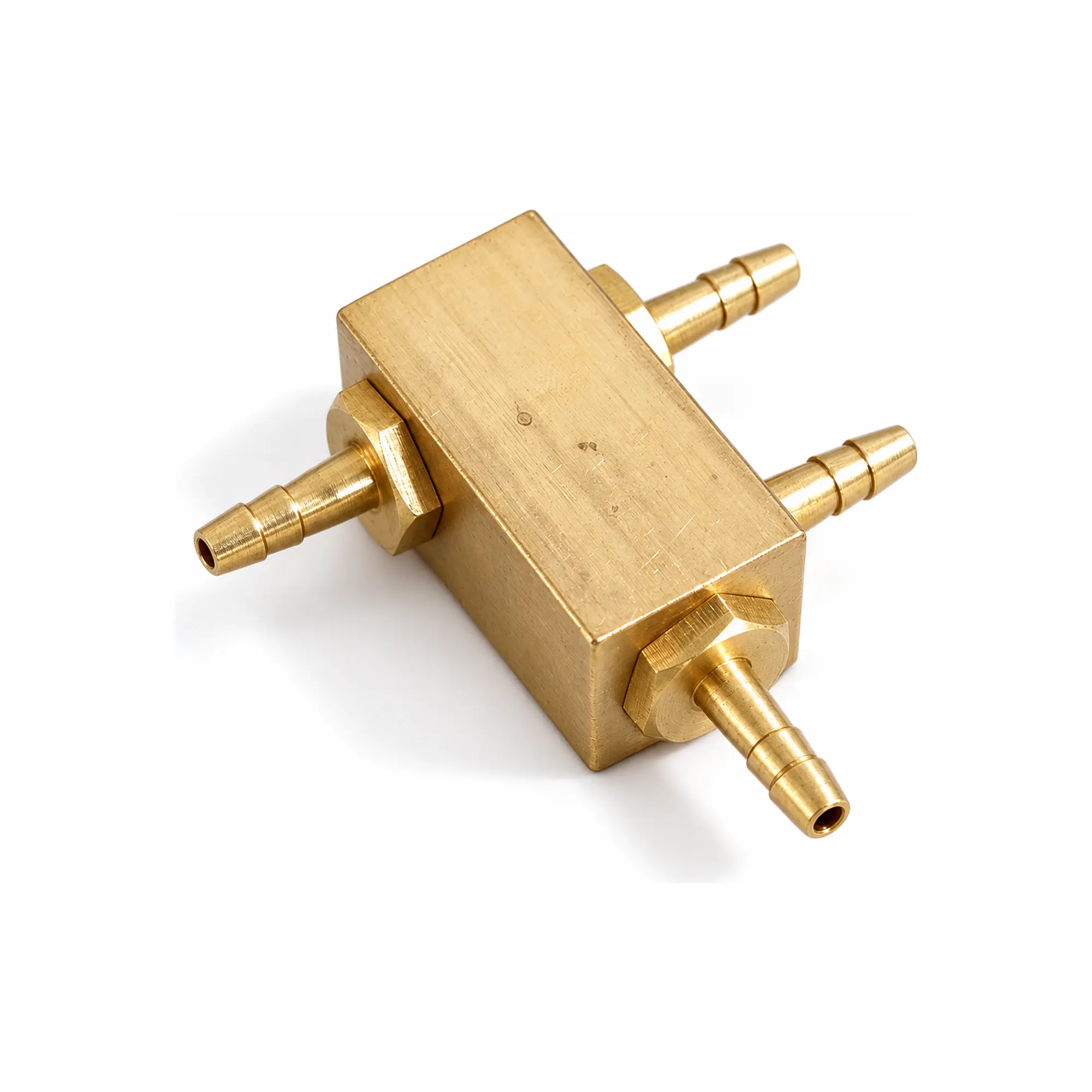

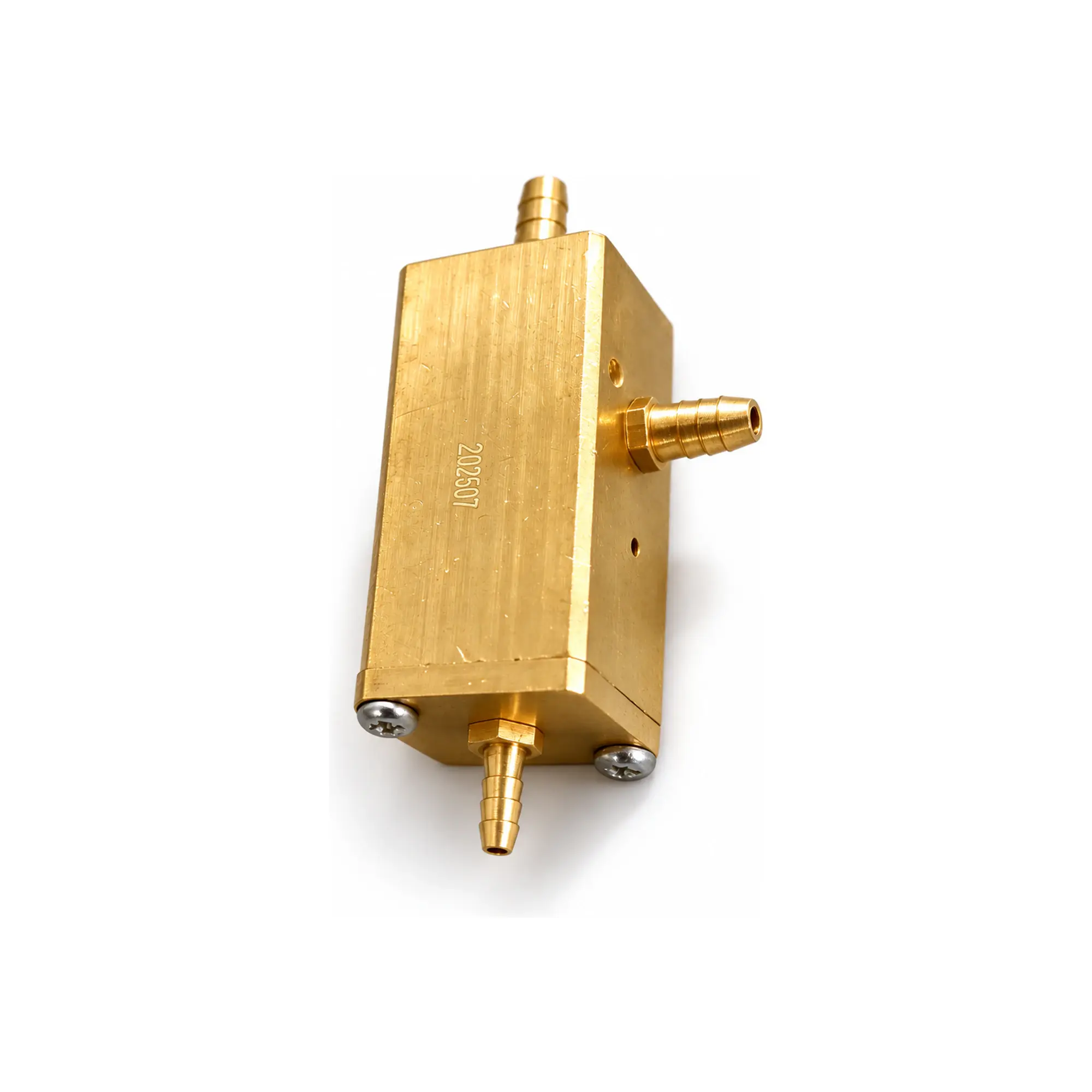

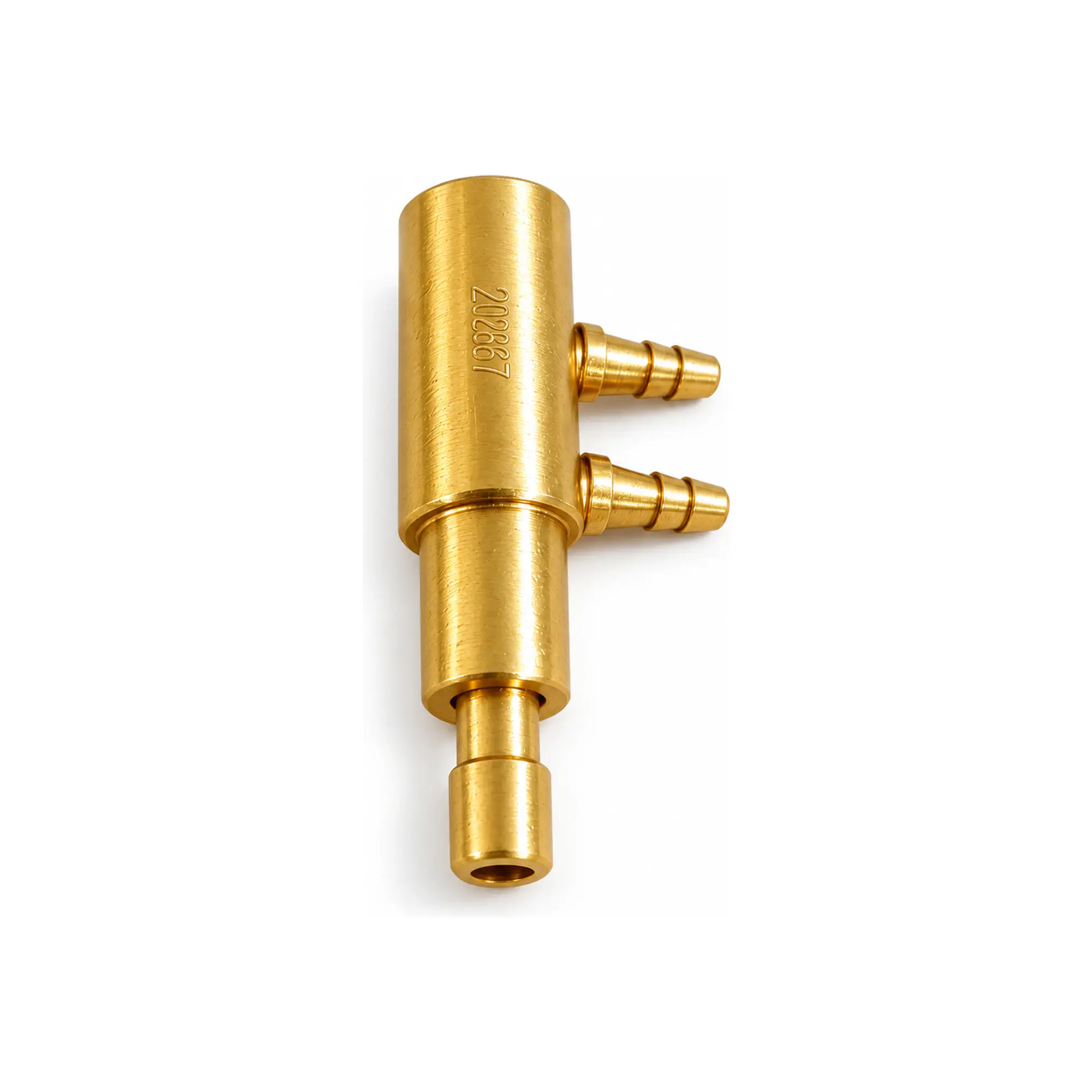

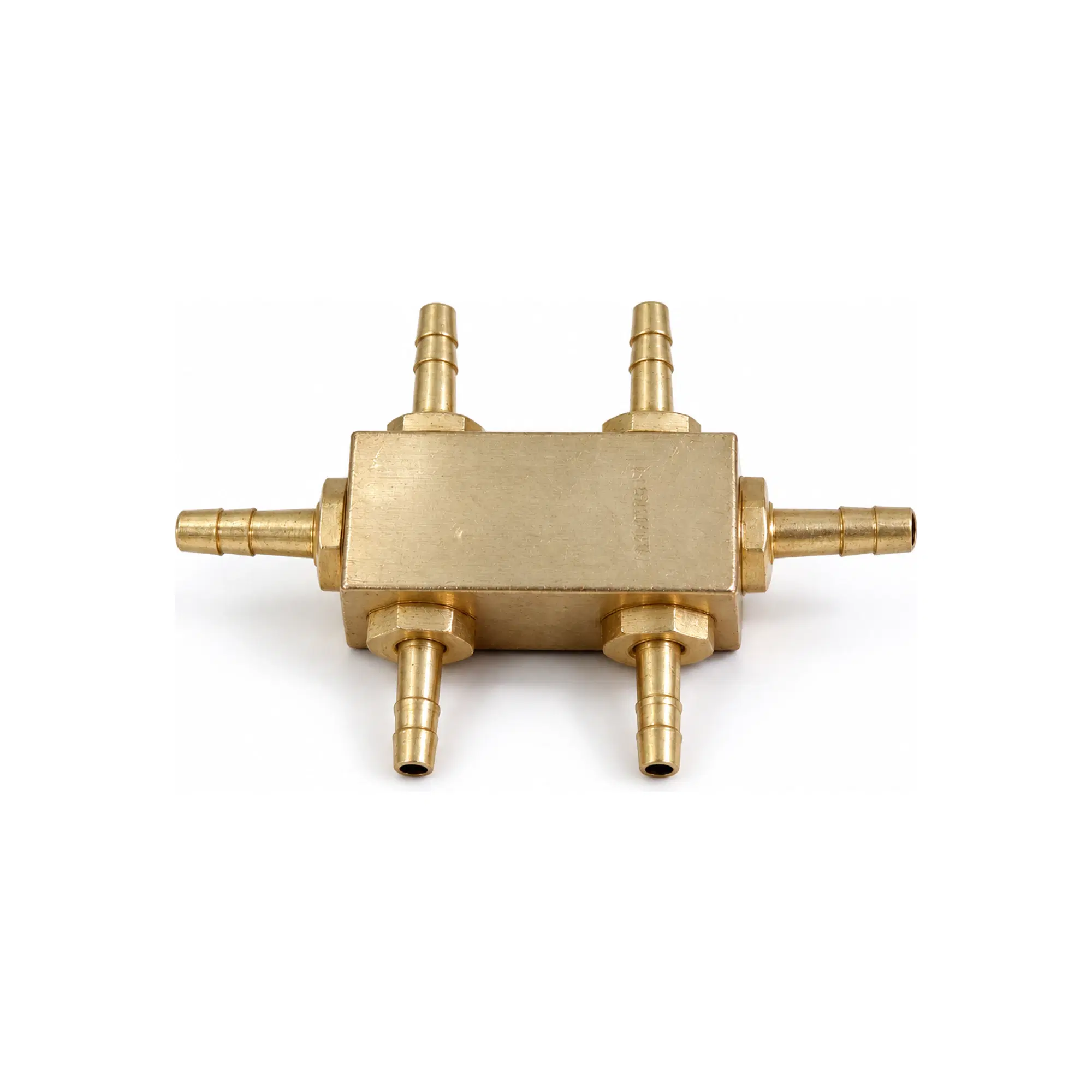

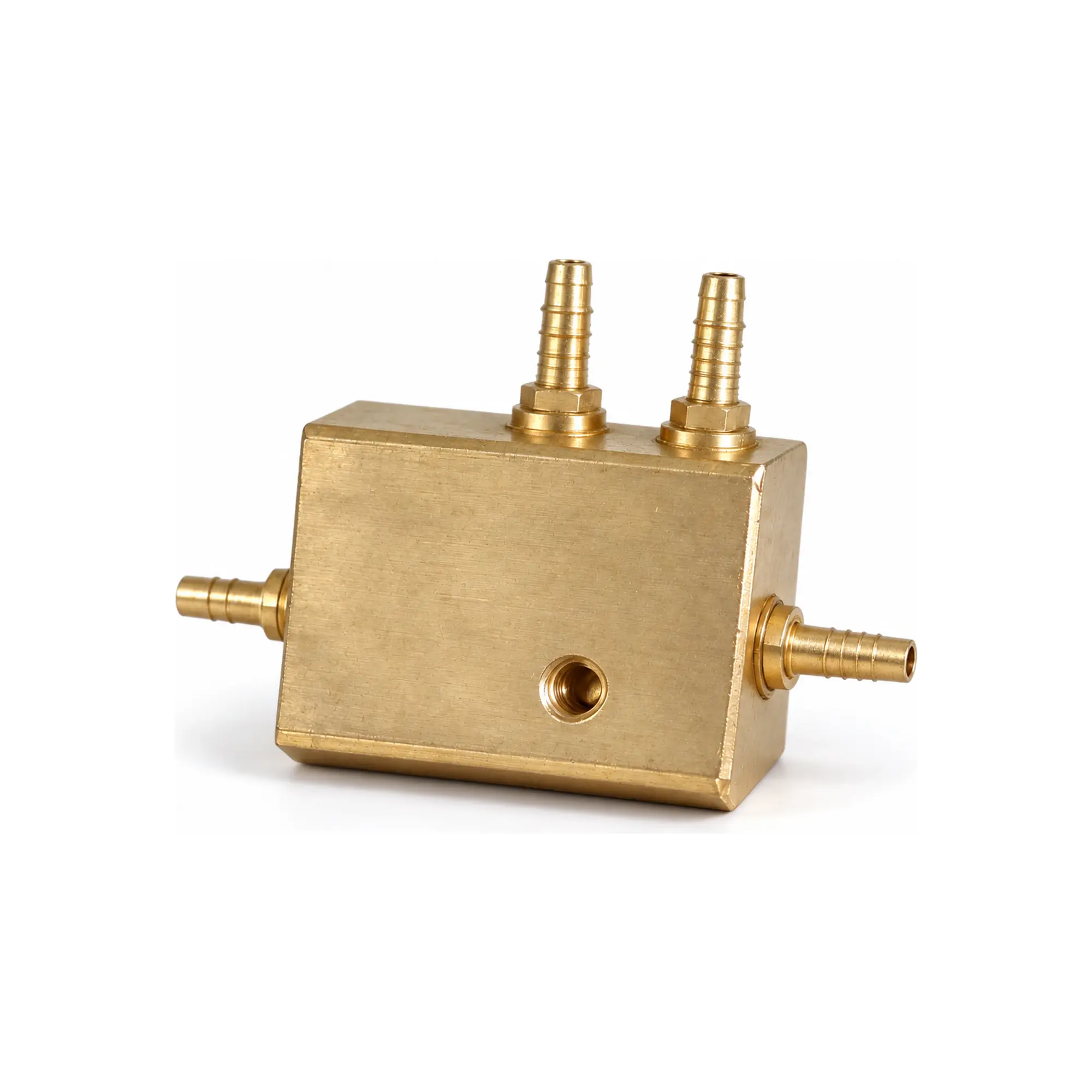

The gallery groups the supplied dental-unit component views, body layouts and connection arrangements into one custom product. Use the photographs to identify a reference for discussion, then specify the required circuit function. Similar brass-colored bodies may have different internal passages or operating behavior. A photograph does not establish a port count, a normally open or normally closed function, or a pressure rating. The component supplied for your project must be identified by an agreed drawing and operating specification rather than a visually inferred product name.

Send a port or circuit diagram showing the required flow paths and any actuator operation. Define the medium, operating pressure, temperature requirements, tubing dimensions and connection orientation. Include seal requirements where they affect compatibility with the intended fluid or process. These details allow purchasing and engineering to compare the actual component rather than only the external shape. Material, internal construction and operating limits are confirmed for the selected configuration. No common pressure range, flow value or seal material is assigned to every fitting shown in the gallery.

For a replacement dental unit valve, measure the tube connection, thread if present, mounting arrangement and available clearance. Identify the source equipment and include photographs of the installed component as well as the removed part. For an OEM circuit, supply the proposed drawing and the connection requirements for adjacent parts. Check the sample against the approved port diagram and agreed functional acceptance criteria. Retain the drawing revision and sample reference, because a matching external body does not by itself demonstrate matching flow behavior or actuator operation.

Request a custom valve sample quotation with the selected gallery reference, technical drawing, sample quantity and expected production volume. Include destination market, inspection requirements, packaging preferences and any spare-parts identification needs. For a dental unit fittings bulk order, ask the supplier to identify the exact supplied configuration and relevant material or technical documentation in the offer. Agree the sample approval process and current lead time before purchase. Keep the approved connection dimensions and circuit function on the order so later deliveries are not selected by an ambiguous three-port or directional-valve label.
