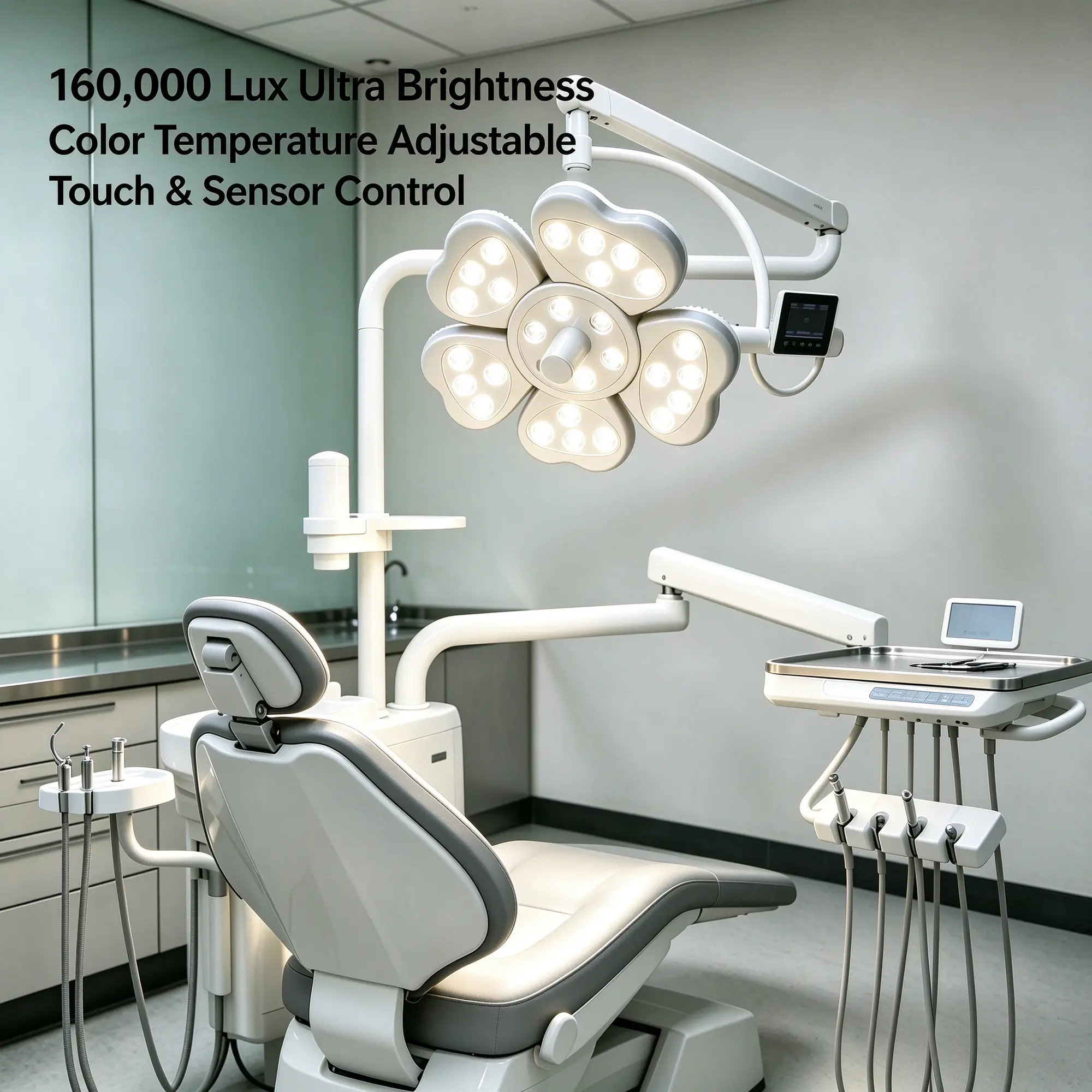

CL026 26-LED Dental Surgical Light

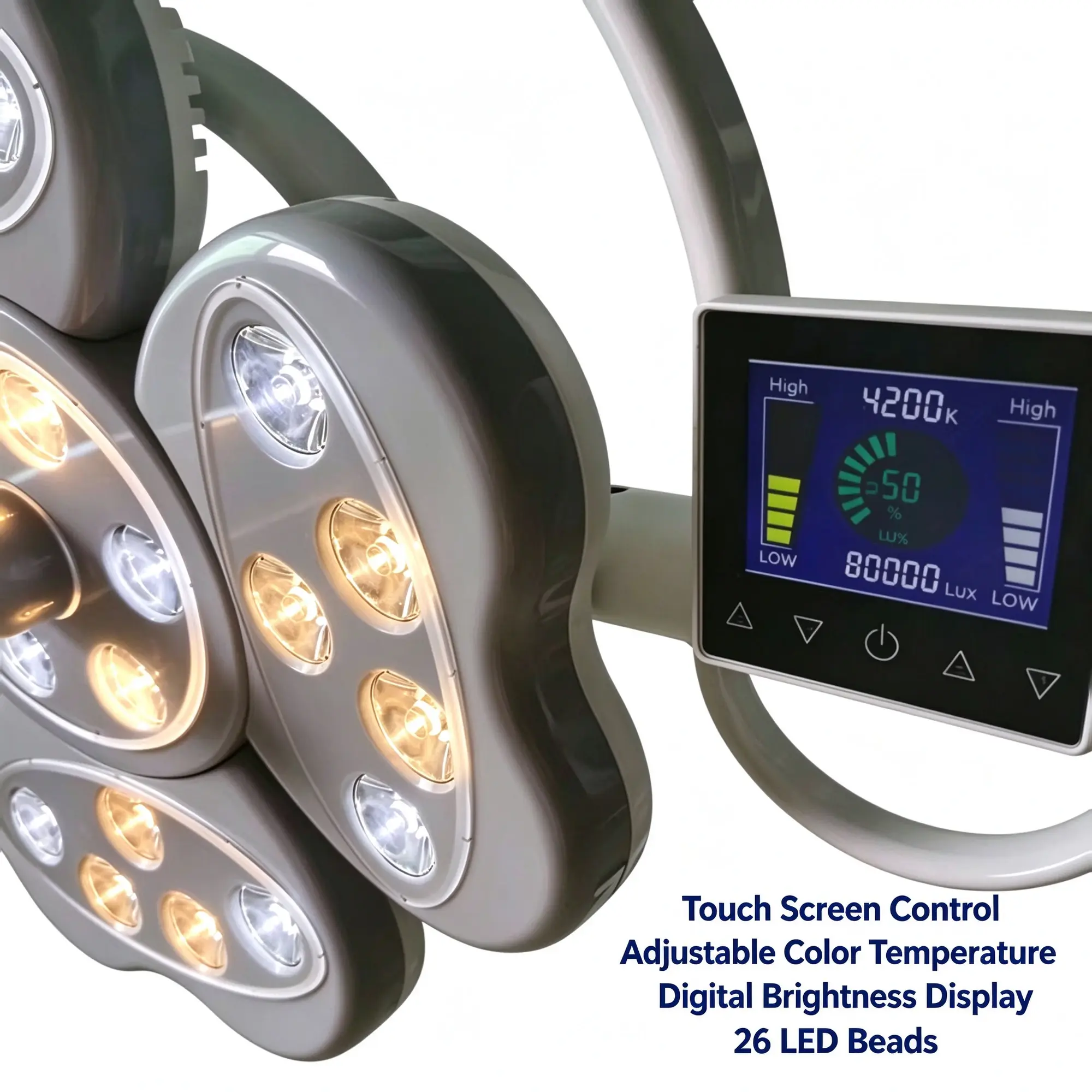

The CL026 is a 26-LED light head for dental procedure-lighting equipment projects. Its published 10,000–240,000 lux range, 78 W rated power and 250 mm light-spot diameter provide specific starting points for an engineering comparison. Touch and sensor adjustment are listed together with a display for brightness and color temperature. The available settings are 3000 K, 4000 K and 5500 K. Because a measurement distance is not stated in the source, the maximum illuminance and spot diameter must be confirmed under the proposed installation conditions.

The CL026 uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is all aluminum alloy. Use the published 5 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

A CL026 sample review should include touch and sensor response, display readability, the selected temperature settings and the intended lighting positions. Review the lamp-head mass with the arm and fixing structure before approving an installation. The listed 5 kg net weight, 6 kg gross weight and carton size describe the stated head configuration, not an entire ceiling support or trolley system. A three-year warranty is included in the source data. Confirm its commercial terms together with the mounting components, electrical accessories and documentation supplied.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CL026, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 65 × 60 × 28 cm with 6 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
