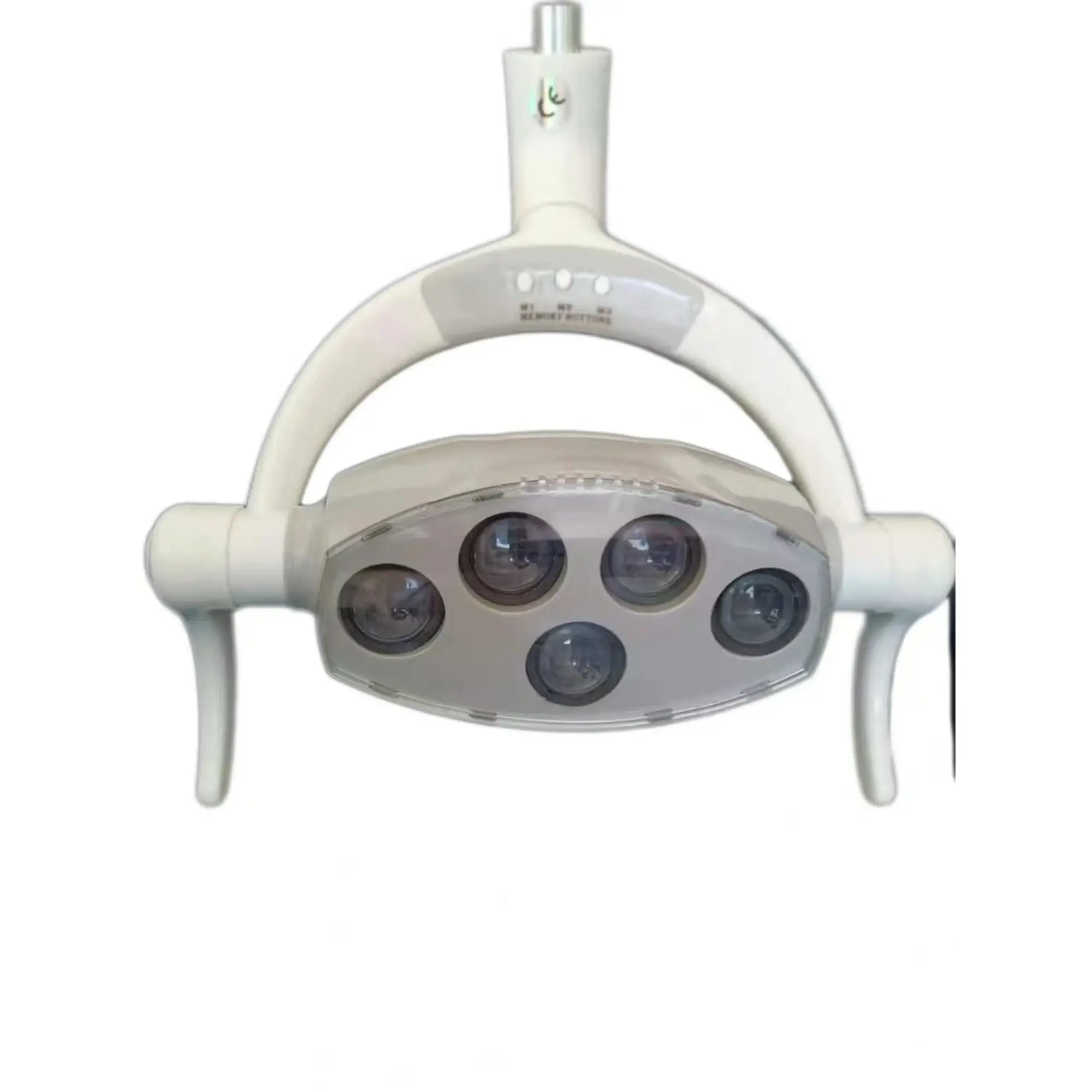

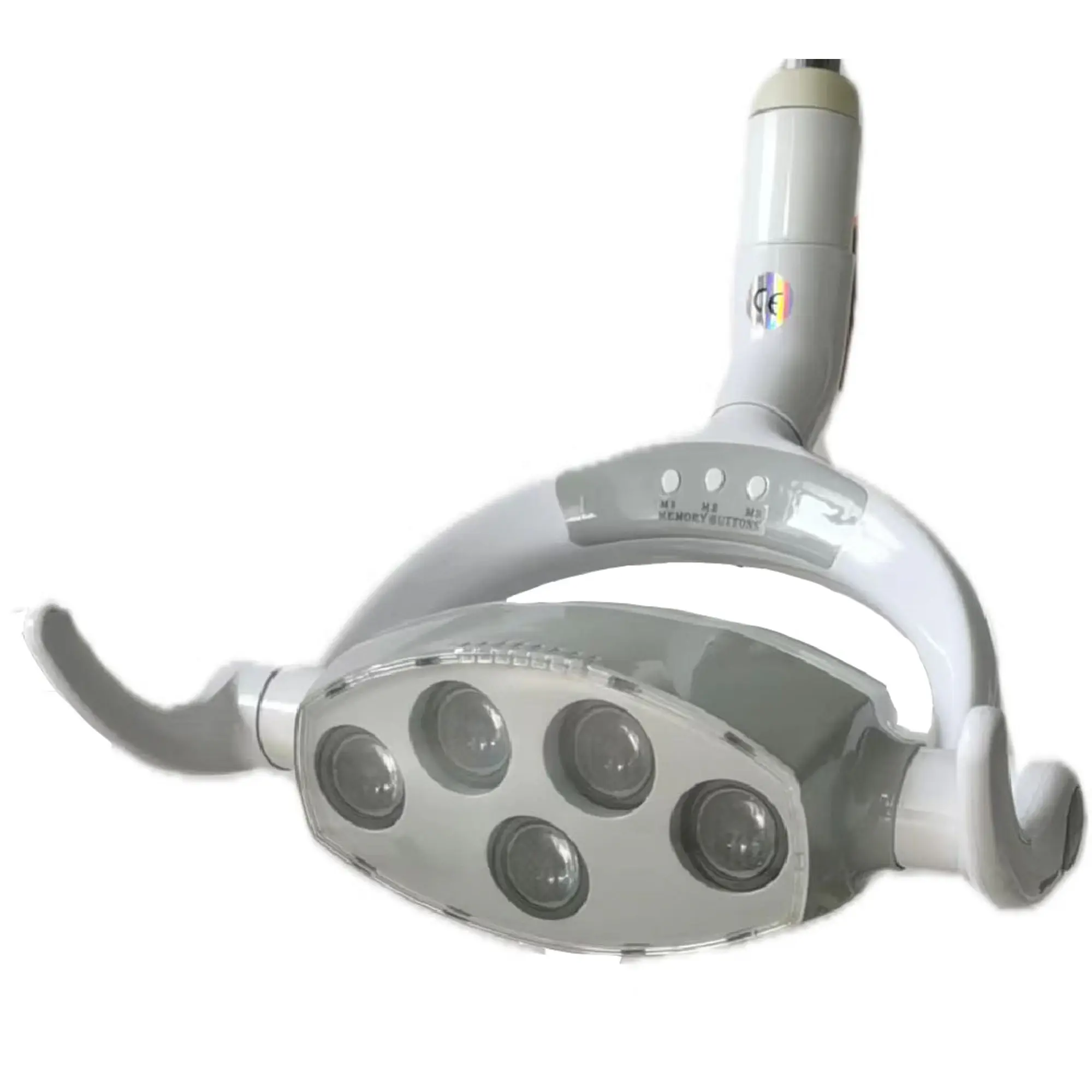

CL105 5-LED Dental Operating Light

The CL105 is a five-LED dental operating light with brightness memory and a brightness indicator. The published 20,000–60,000 lux range is paired with 16 W rated power, sensor and manual adjustment, and 3000 K, 4000 K and 5500 K settings. Brightness memory is useful to evaluate where an equipment specification calls for a retained setting, while the indicator gives the buyer a visible control reference. Smart cooling and an all-aluminum-alloy pivot are listed features of this model, not assumptions applied across the whole lighting range.

The CL105 uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is all aluminum alloy. Use the published 1.5 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

During CL105 sample approval, check how the brightness memory and indicator behave through the intended operating sequence. Demonstrate the three temperature settings and both adjustment methods to the team preparing user instructions. Review handle clearance and head positioning with the selected arm. The source lists a 1.5 kg net weight and a 3-year warranty for the head. If a mobile stand or other support is ordered with it, approve that assembly and its supplied scope separately instead of treating head data as complete-system ratings.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CL105, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 37 × 17 × 37 cm with 2 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
