CX106A Dual-Mode Dental Operating Light

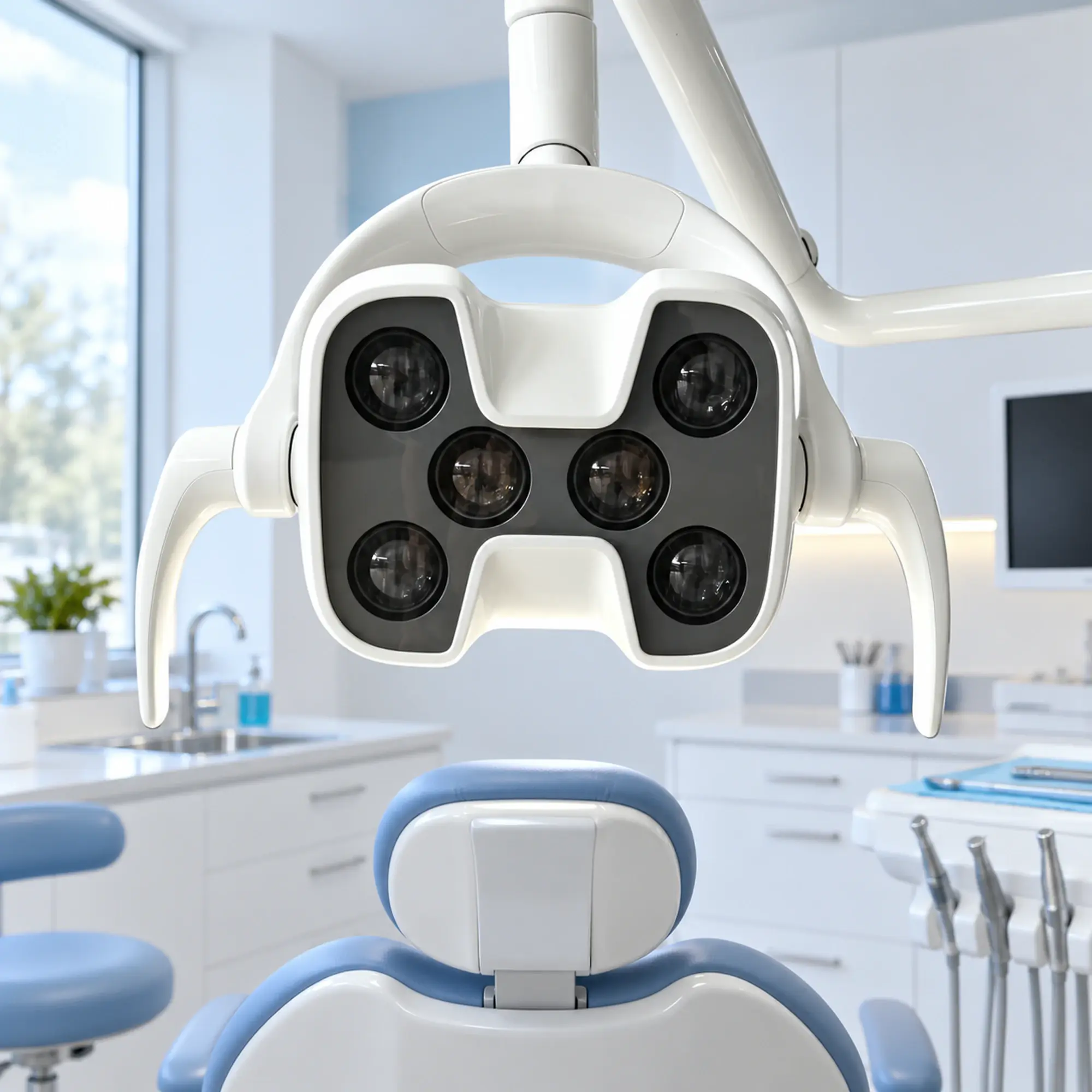

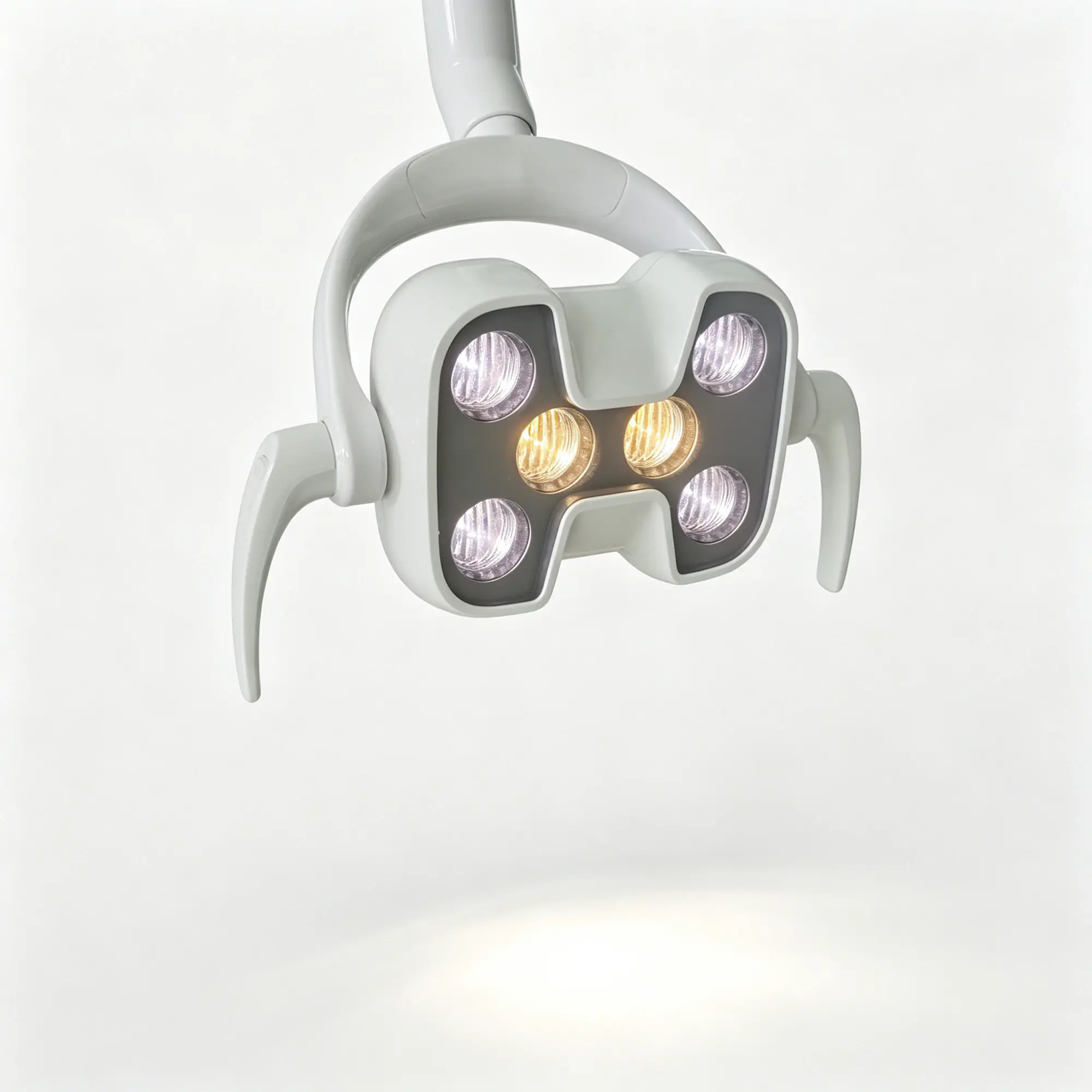

The CX106A is a six-LED dental operating light with a selectable four-white-LED configuration. Its published illuminance range is 14,000–26,000 lux at 18 W rated power. That output must not be confused with the CX106 specification simply because both products use six LEDs. The source describes dual-color-temperature capability and lists 3000 K, 4000 K and 5500 K configuration choices. Confirm the exact supplied temperatures and switching arrangement when ordering rather than assuming that every listed temperature is available in every control mode.

The CX106A uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is aluminum and ABS. Use the published 1.4 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

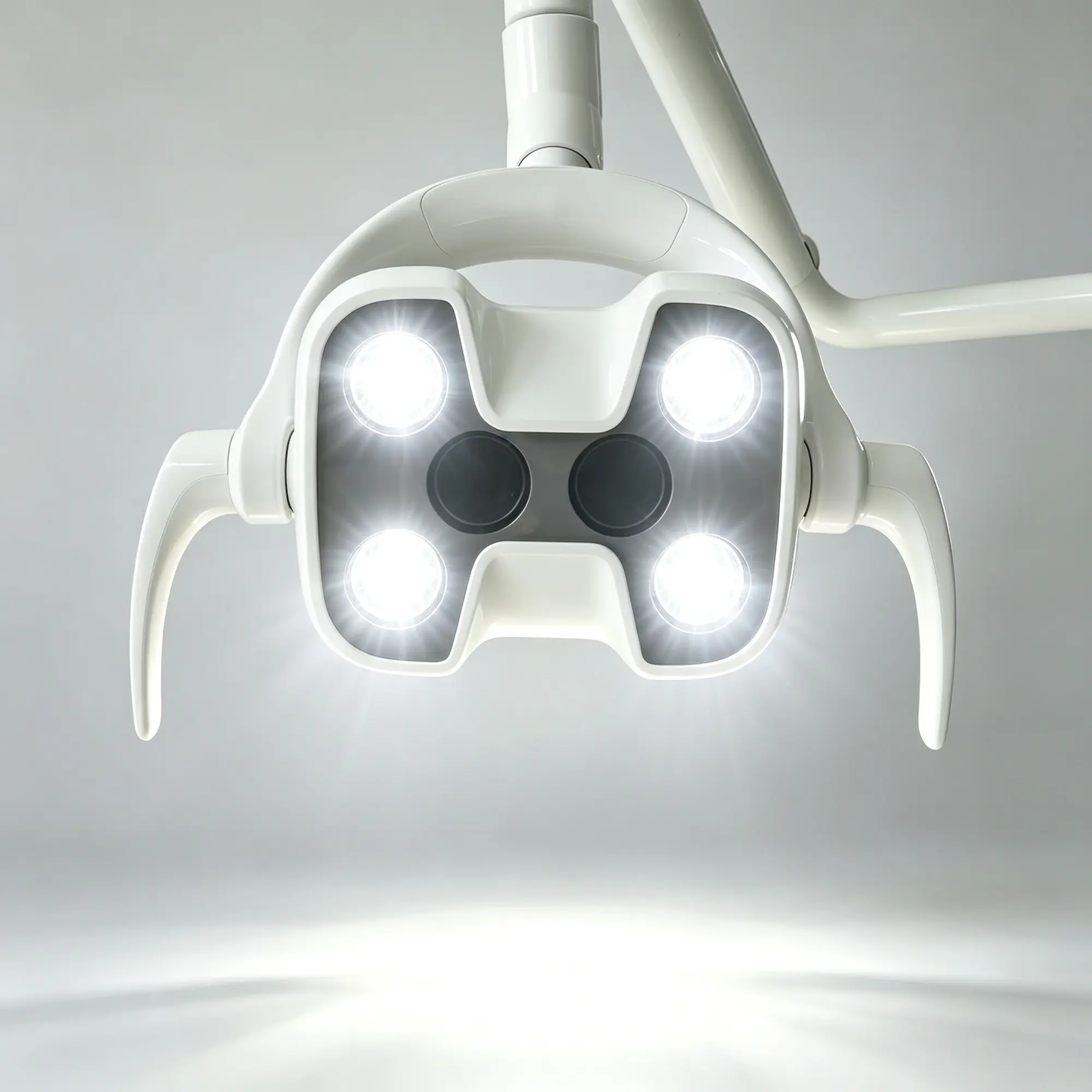

For CX106A sample approval, demonstrate the four-white-LED configuration and the ordered lighting modes together with sensor and on/off-button operation. Identify the mode names in the instruction material so a distributor and its service team describe the same controls. Check the lamp in the intended mounting arrangement before signing off the connector and cable route. Natural heat dissipation is the published cooling method. A one-year warranty is listed for this model; the quotation should define its terms and the accessories covered.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CX106A, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 42 × 32 × 15 cm with 1.8 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
