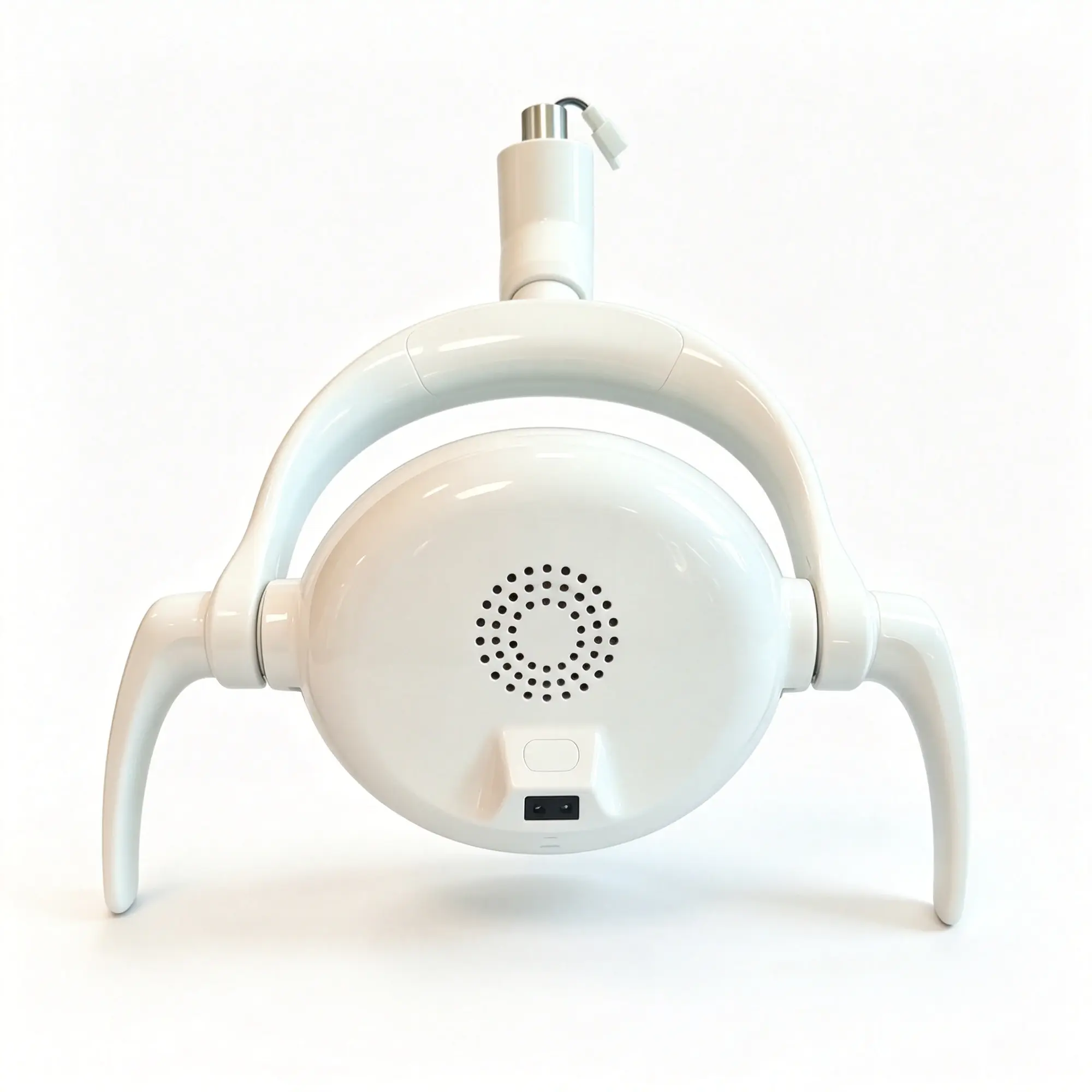

CX106F Reflective Dental Operating Light

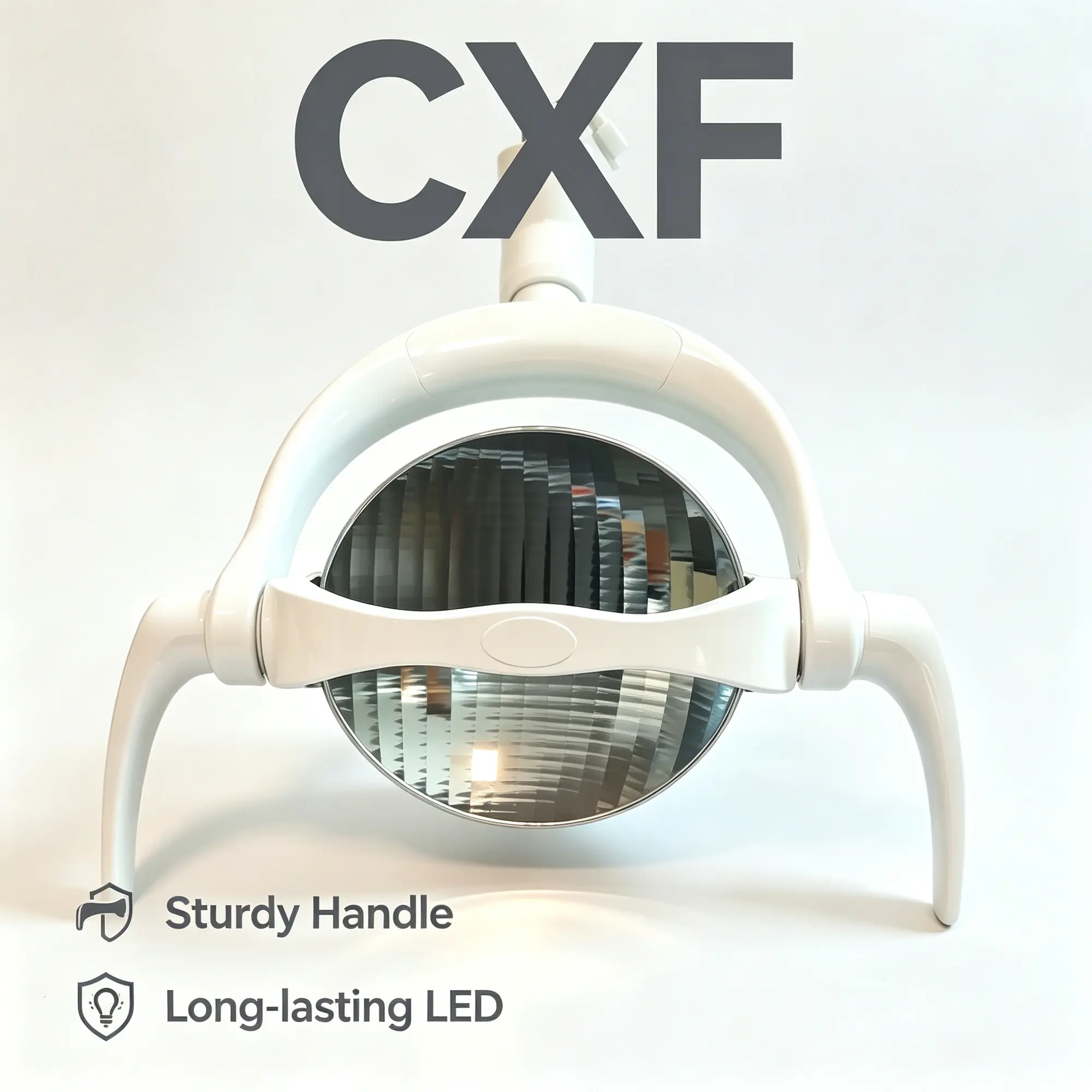

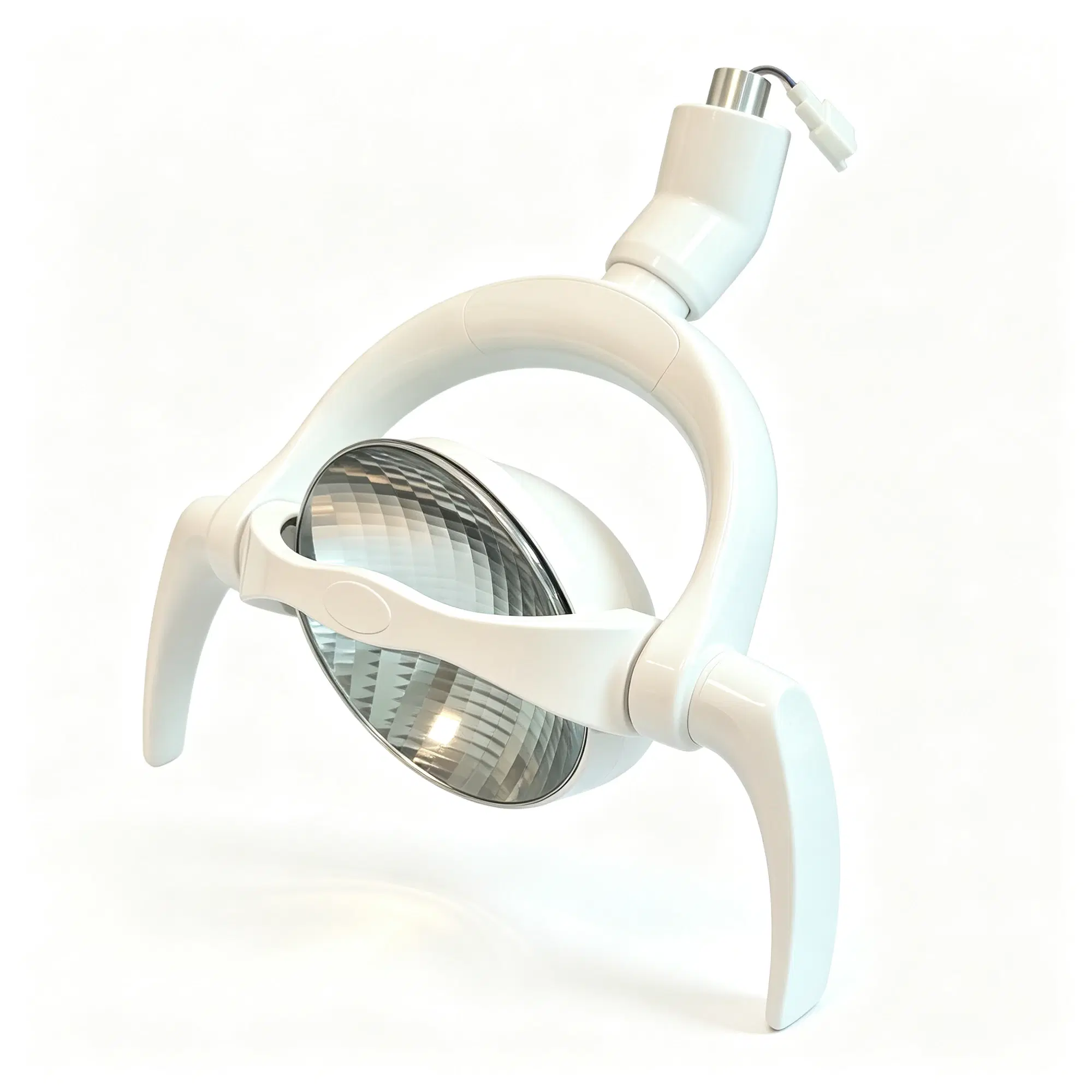

The CX106F uses a reflective optical configuration with 5500 K illumination and sensor control. Its published 14,000–20,000 lux range and 10 W rated power make it a distinct sourcing option from the lens-array LED heads. Buyers should compare optical arrangement, control method and mounting needs rather than rely on a similar exterior finish. The supplied parameter table does not specify an LED count or warranty duration for this model, so neither figure is added to the product specification or purchasing description.

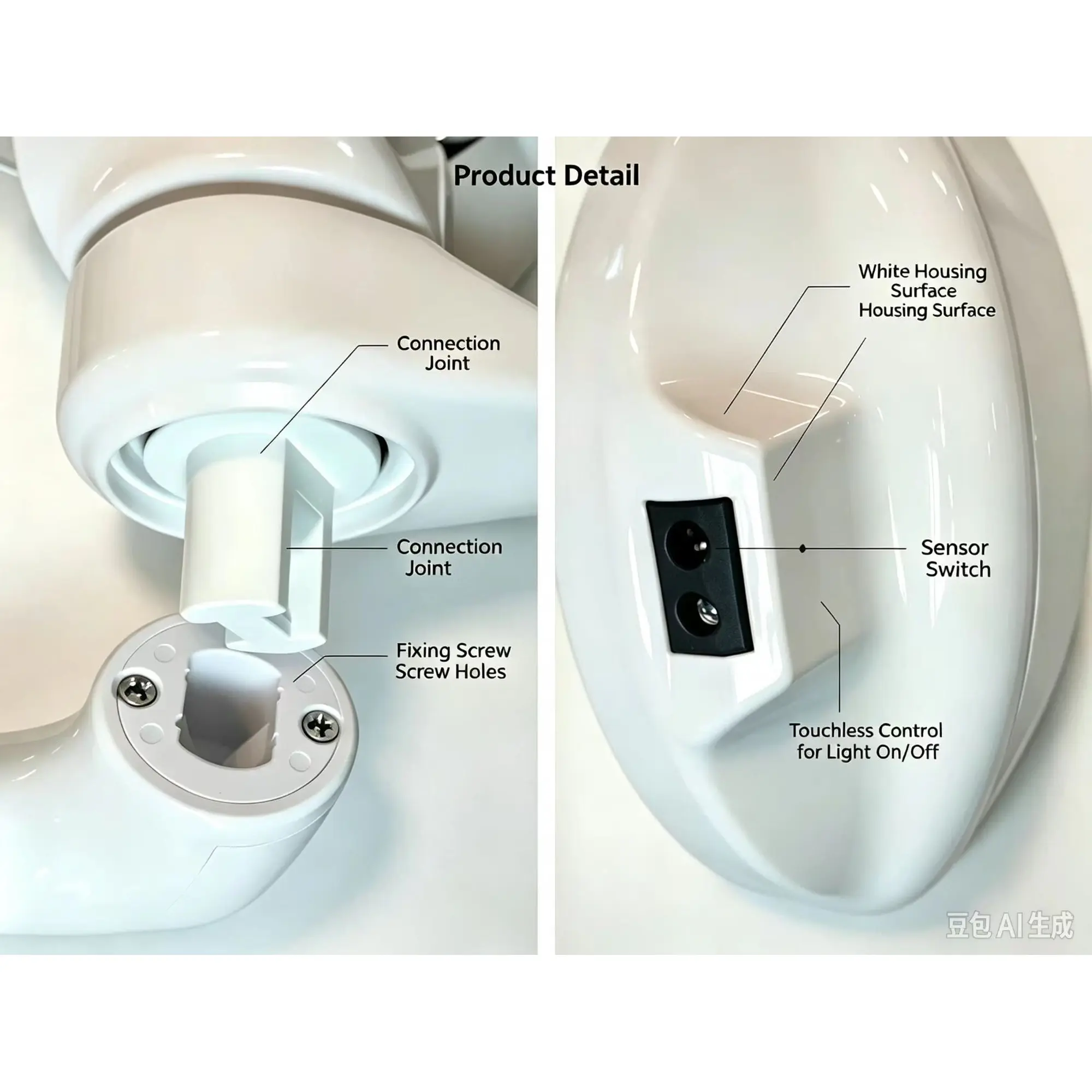

The CX106F uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is aluminum and ABS. Use the published 1.2 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

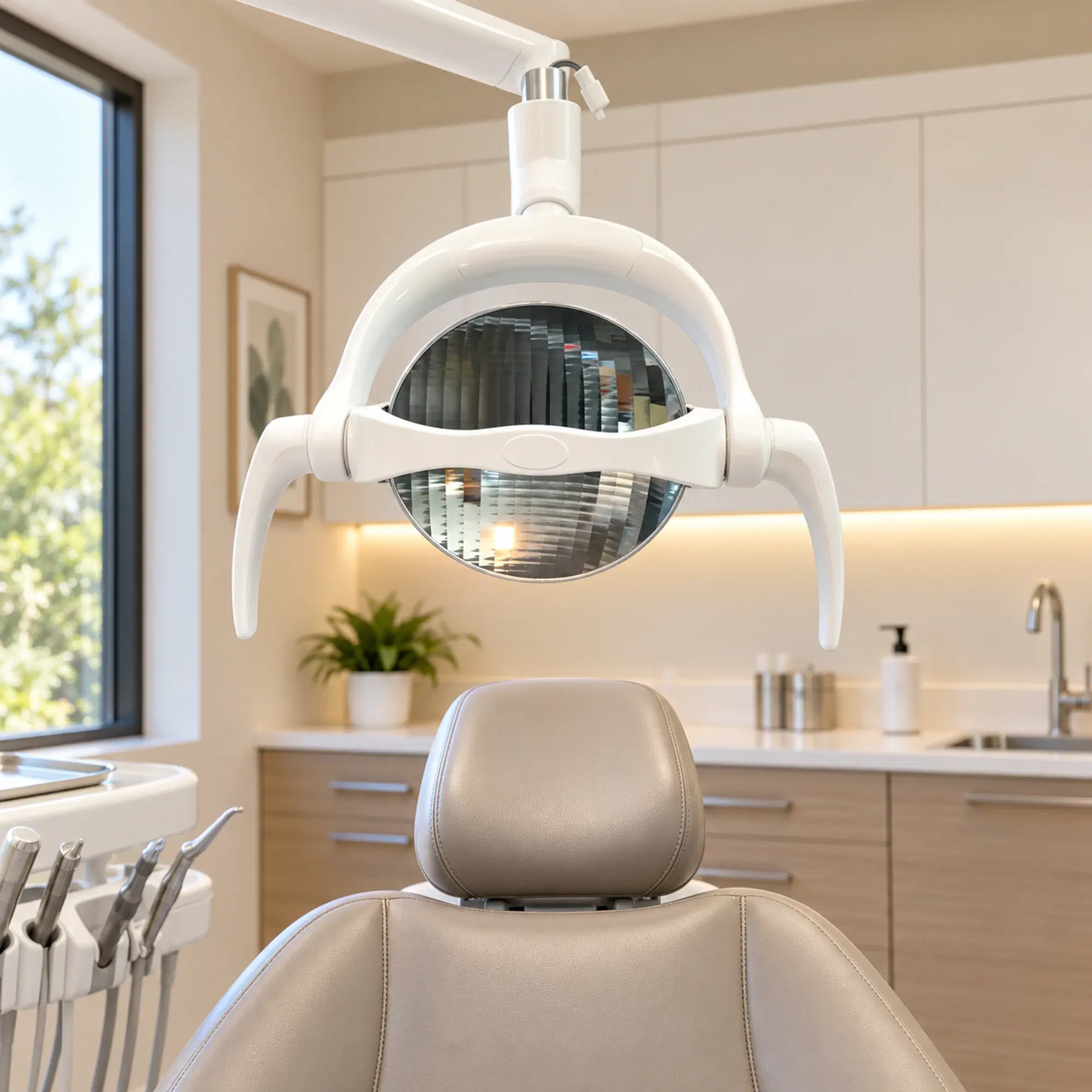

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

Assess a CX106F sample for sensor response, positioning and illumination at the intended working distance. Keep the reflective optical arrangement clear in your own technical listing so it is not substituted for a different light head on a repeat order. The published 1.2 kg net weight and 1.8 kg gross weight describe the head and its stated packing, not a complete arm or floor-standing system. Ask for the applicable warranty terms and service-document package in the quotation rather than borrowing them from another model.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CX106F, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 38 × 34 × 11 cm with 1.8 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
